5.4.1 Flow of FTP linkage system operations

This subsection describes operations at the time of starting and stopping the FTP linkage system separately.

Organization of this subsection

(1) When you start FTP linkage system operations

The following figure shows the flow of starting the operations of the FTP linkage system:

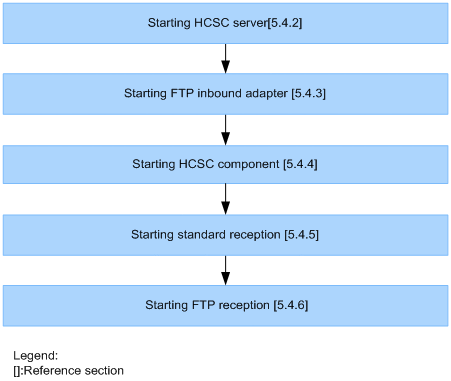

Figure 5‒3: Flow of starting the operations of the FTP linkage system

The following figure shows the flow of stopping the operations of the FTP linkage system:

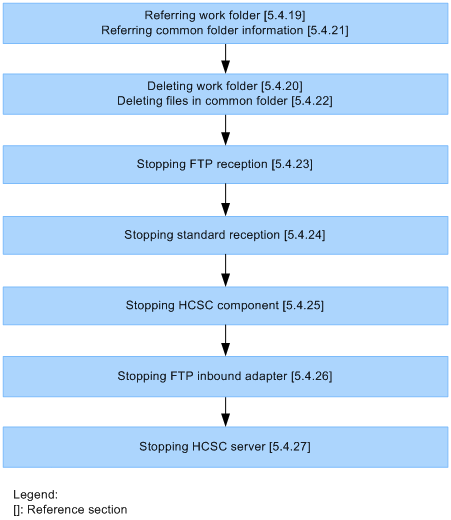

Figure 5‒4: Flow of stopping the operations of the FTP linkage system
