1.4.1 Operations Using a Single HCSC Server

The following figure shows a configuration consisting of a single HCSC server:

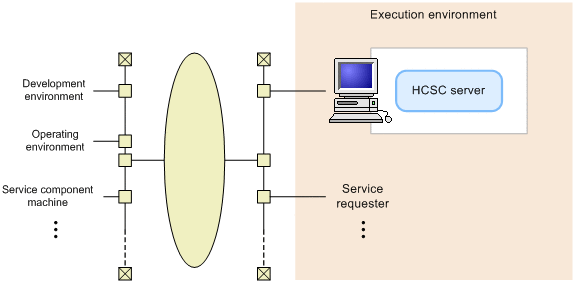

Figure 1‒9: Configuration of HCSC server (For a single HCSC server)

When there is only one HCSC server, all HCSC components are deployed on that HCSC server. In this case, all service modules are called from the same HCSC server.
