4.8.2 Specifying URL

To display the status information, specify the URL from Web browser in the following format. Note that the server status may be displayed incorrect temporarily depending upon the timings:

http://Host-name[:Port-number]/server-status[?{refresh=update-interval|auto|notable}]

You can specify refresh=updated interval, auto, and notable respectively with the conjunction &. However, the auto is in the plain text, and hence there is no significance of specifying auto together with notable.

• refresh=update-interval ((1-3600))

  Specify the interval in which the Web server status information is to be updated, in seconds. However, the Web browser needs the functionality to support the Refresh header of HTTP response header. If a value not within the acceptable range is specified, 60 seconds is set.

• auto

  This is displayed in the plain text format. As the auto is displayed in the plain text, you can easily use auto in other programs.

• notable

  Display the status information in HTML without using the <TABLE> tag.

example-of-specification

http://www.example.com/server-status?refresh=60&notable

example-of-display

http://www.example.com/server-status

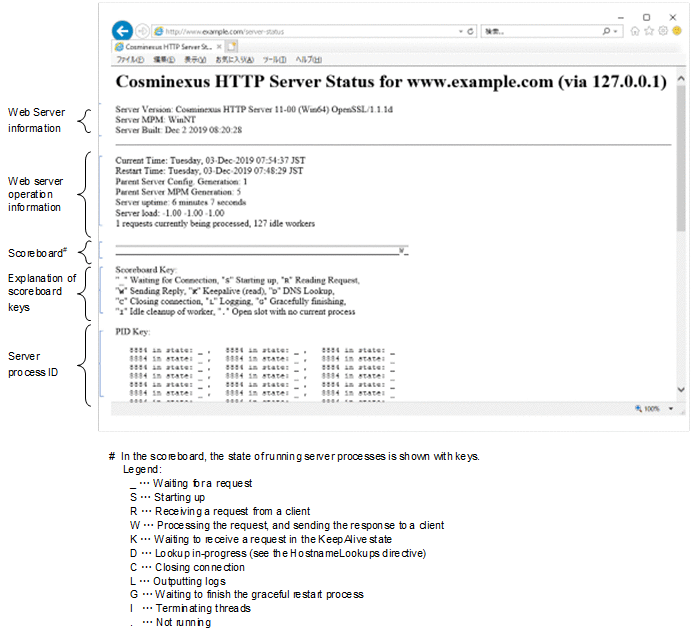

The following figure shows the example of status information display, when the URL is specified as above. The display format varies slightly for UNIX version and Windows version.

Figure 4‒12: Example of status information display
