4.3.2 Virtual host based on IP address

The IP address-based virtual host appears as multiple hosts to clients by the following three methods:

Using multiple ports
Specifying multiple network interfaces in a single server machine
Specifying an alias of an IP address

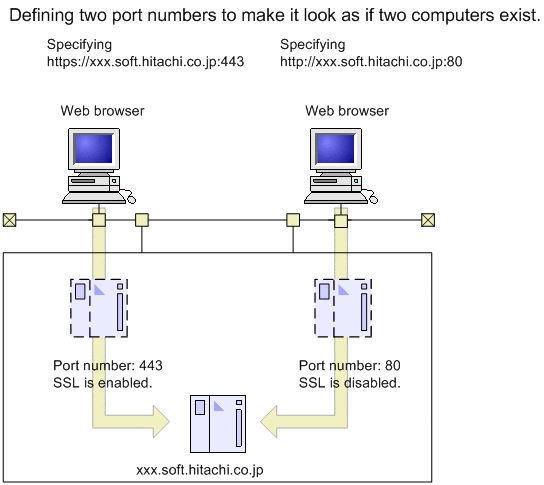

Example 1: Open two ports on a Web server on a single server machine, and run as two hosts, one as a Web server that supports SSL and the other as a Web server that does not support SSL.

Listen 443                                                                             ...1
Listen 80                                                                              ...2
<VirtualHost xxx.soft.hitachi.co.jp:443>                                               ...3
    DocumentRoot "Application-Server-installation-directory/httpsd/ssldocs"
    SSLEngine On                                                                       ...4
    SSLCertificateFile "Application-Server-installation-directory/httpsd/conf/ssl/server/httpsd.pem"
    SSLCertificateKeyFile "Application-Server-installation-directory/httpsd/conf/ssl/server/httpsdkey.pem"
</VirtualHost>
<VirtualHost xxx.soft.hitachi.co.jp:80>                                                ...5
    DocumentRoot "Application-Server-installation-directory/httpsd/htdocs"
    SSLEngine Off                                                                      ...6
</VirtualHost>

Definition of port number
Definition of port number
Definition of virtual host of port number 443
Enable SSL
Definition of Virtual host of port number 80
Disable SSL

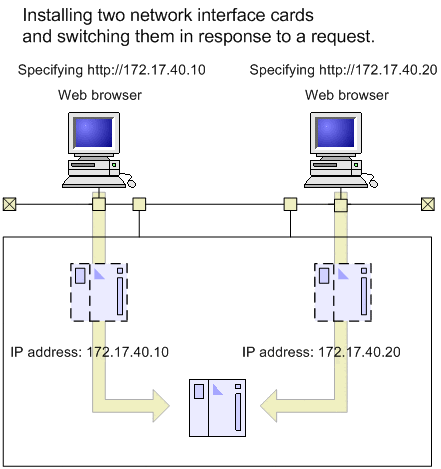

Example 2: Provide two NIC (Network Interface Card) (IP address: 172.17.40.10 and 172.17.40.20) on a single server machine, and switch hosts according to Web browser requests, on a single Web server.

If the request from Web browser is http://172.17.40.10/, see Application-Server-installation-directory/httpsd/htdocs1/index.html (when DirectoryIndex is specified as index.html).

If the request from Web browser is http://172.17.40.20/, see Application-Server-installation-directory/httpsd/htdocs2/index.html (when DirectoryIndex is specified as index.html).

Listen 80
<VirtualHost 172.17.40.10>
DocumentRoot "Application-Server-installation-directory/httpsd/htdocs1"
ServerName www10.xxx.soft.hitachi.co.jp
</VirtualHost>
<VirtualHost 172.17.40.20>
DocumentRoot "Application-Server-installation-directory/httpsd/htdocs2"
ServerName www20.xxx.soft.hitachi.co.jp
</VirtualHost>

[Figure]
