15.12.2 Trace collection points and trace information that can be collected during the acquisition processing of EntityManager
- Organization of this subsection
(1) Trace collection points and PRF trace collection levels
The following table describes the event IDs, trace collection points, and PRF trace collection levels.
|
Event ID |
No. in the figure# |
Trace acquisition points |
Level |
|---|---|---|---|
|
0xA300 |
1 |
When the processing of EntityManagerFactory#createEntityManager() starts |
B |
|
0xA301 |
2 |
When the processing of EntityManagerFactory#createEntityManager() ends |
B |
|
0xA302 |
1 |
When the processing of EntityManagerFactory#createEntityManager(Map) starts |
B |
|
0xA303 |
2 |
When the processing of EntityManagerFactory#createEntityManager(Map) ends |
B |
- Legend:
-
B: Advanced
- #
-
Corresponds to the numbers in Figure 15-22.

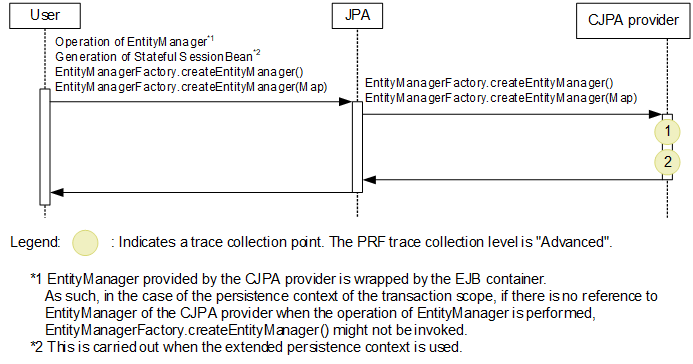

The following figure shows the trace collection points.
|
|
![[Figure]](GRAPHICS/ZU076000.GIF)
(2) Trace information that can be collected
The following table describes the trace information that can be collected during the acquisition processing of EntityManager.
|
No. in the figure#1 |
Event ID |
Level |
Information that you can acquire |
||
|---|---|---|---|---|---|
|
Interface name |
Operation name |
Optional |
|||
|
1 |
0xA300 |
B |
-- |
-- |
-- |
|
0xA302 |
B |
-- |
-- |
-- |
|
|
2 |
0xA301 |
B |
-- |
-- |
#2 |
|
0xA303 |
B |
-- |
-- |
#2 |
|
- Legend:
-
B: Advanced
--: Not applicable
- #1
-
Corresponds to the numbers in Figure 15-22.
- #2
-
When an exception occurs, the exception is displayed.
