15.7.3 Trace collection points and PRF trace collection levels (when an in-process HTTP server is used)
The following table describes the events IDs, trace collection points, and PRF trace collection levels when an in-process HTTP server is used.
|
Event ID |
No. in the figure#1 |
Trace acquisition points |
Level |
|---|---|---|---|
|
0x8202#2 |
5 |
Immediately before a servlet or JSP is invoked |
A/B |
|
0x8203 |
4 |
Immediately before the filter that is executed before the execution of the servlet or JSP that receives the request is invoked (when the <dispatcher> tag of the <filter-mapping> tag of web.xml is omitted or when a filter for which REQUEST is specified in the <dispatcher> tag is invoked) |
B |
|
0x8206 |
6 |
Immediately before a servlet or JSP is invoked via RequestDispatcher |
B |
|
0x8207 |
5 |
Immediately before the static contents are invoked |
B |
|
0x8211 |
3 |
Immediately after acquiring a request/completing the request header analysis |
A/B |
|
0x8212 |
1 |
Immediately before data reading from the Web client starts |
B |
|
0x8213 |
8 |
Immediately before data writing into the Web client starts |
B |
|
0x8302 |
10 |
Immediately after the completion of processing of the servlet or JSP |
A |
|
0x8303 |
11 |
Immediately after the completion of processing of the filter that is executed before the execution of the servlet or JSP that receives the request (when the processing of the filter for which REQUEST is specified in the <dispatcher> tag of the <filter-mapping> tag of web.xml is complete) |
B |
|
0x8306 |
7 |
Immediately after the completion of processing of the servlet or JSP via RequestDispatcher |
B |
|
0x8307 |
10 |
Immediately after completion of processing of static contents (DefaultServlet) |
B |
|
0x8311 |
12 |
Immediately after the completion of request processing |
A/B |
|
0x8312 |
2 |
Immediately after the completion of data reading from the Web client |
B |
|
0x8313 |
9 |
Immediately after the completion of data writing into the Web client |
B |
- Legend:
-
A: Standard
B: Advanced
A/B: Different information is collected for the Standard and Advanced levels.
- #1
-
Corresponds to the numbers in Figure 15-8.
- #2
-
If JSP compilation is required, the trace is collected after the JSP compilation is executed.

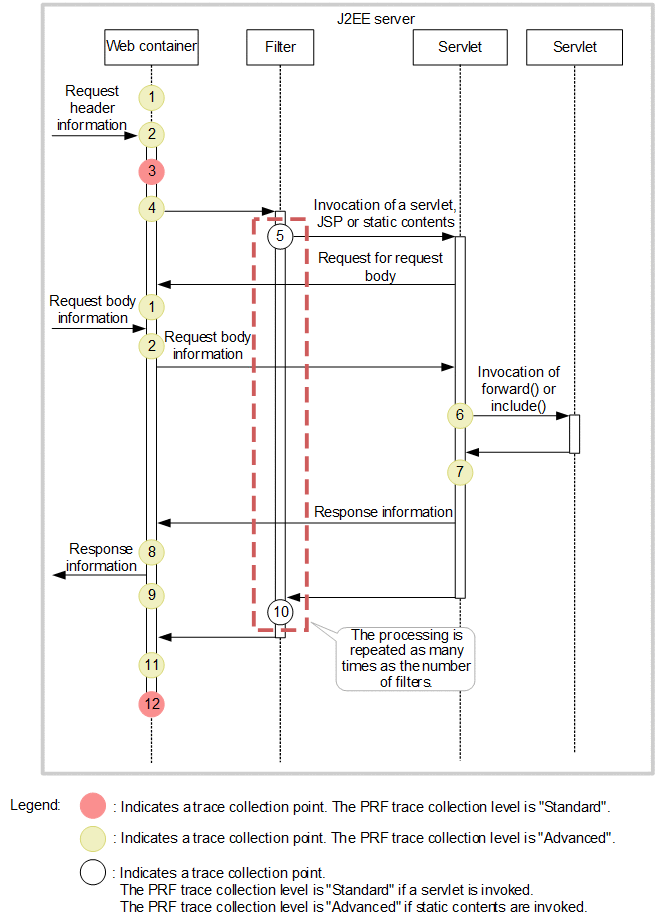

The following figure shows the trace collection points when an in-process HTTP server is used.
|
|
![[Figure]](GRAPHICS/ZU071300.GIF)
Because the request information is received from the client more than once at the points 1 and 2, the trace information is also output more than once.
Because the response information is sent to the client more than once at the points 8 and 9, the trace information is also output more than once.
Even when a request for the request body information, and a response are sent from the filter, the trace for points 2 or 8, and points 8 and 9 is output.
