15.5.1 Trace collection point

The trace collection points are broadly classified into trace collection during the startup and termination of a J2EE server, trace collection during processing in each function layer, and trace collection during the startup and termination of application methods.

Organization of this subsection

(1) Trace collection during the startup and termination of the J2EE server
(2) Trace collection in each function layer
(3) Trace collection during the startup and termination of application methods
(4) Return codes for each trace

(1) Trace collection during the startup and termination of the J2EE server

The trace information can be collected when the startup processing of the J2EE server ends, and when the termination processing of the J2EE server starts. The event IDs that can be acquired, and the references are as follows:

Event ID

0x8FFE to 0x8FFF
Reference

For details on trace collection when a J2EE server starts or terminates, see 8.22 Trace collection points when a J2EE server is started or terminated in the manual uCosminexus Application Server Maintenance and Migration Guide.

To Page Top

(2) Trace collection in each function layer

The following table describes the correspondence between the event IDs that can be acquired and the function layers.

Table 15‒6: Event IDs that can be acquired and function layers
Event ID	Function layer	No. in the figures^#	Reference location
0x1101 to 0x1102 0x1301 to 0x1302 0x1401 to 0x1406 0x2002 to 0x2003 0x2101 to 0x2104 0x3000 to 0x3008	CTM	5	8.3 in the uCosminexus Application Server Maintenance and Migration Guide
0x8000 to 0x8004 0x8100 to 0x8104	Redirector	1	15.6
0x8200 to 0x8203 0x8206 to 0x8225 0x8300 to 0x8303 0x8306 to 0x8307 0x8311 to 0x8325 0x8E01 to 0x8E06	Web container	2	15.7, 15.8, 15.9, 15.10
0x8401 to 0x840A 0x8425 to 0x8428 0x842D to 0x8434 0x8453 to 0x8454 0x8460 to 0x846D 0x8470 to 0x8477 0x8490 to 0x8491 0x84A0 to 0x84D9 0x8C41	EJB container	6	8.8 in the uCosminexus Application Server Maintenance and Migration Guide
0x8603 to 0x861C	JNDI	4	8.9 in the uCosminexus Application Server Maintenance and Migration Guide
0x8435 to 0x843F 0x8811 to 0x8820 0x8C41	JTA	7	8.10 in the uCosminexus Application Server Maintenance and Migration Guide
0x8B00 to 0x8B01 0x8B80 to 0x8B89 0x8B8A to 0x8C03 0x8C10 to 0x8C13 0x8C20 to 0x8C41 0x8C60 to 0x8C65 0x8C80 to 0x8C93 0x8CC0 to 0x8CD9 0x8D00 to 0x8D19 0x8D60 to 0x8D63 0x8D80 to 0x8D89 0x8D8A to 0x8D8F 0x8D90 to 0x8D99	DB Connector and JCA container	8	8.11 in the uCosminexus Application Server Maintenance and Migration Guide
0x8E01 to 0x8E06	RMI	3	8.12 in the uCosminexus Application Server Maintenance and Migration Guide
0x9400 to 0x9413	OTS	9	8.13 in the uCosminexus Application Server Maintenance and Migration Guide
0x9C00 to 0x9C03	Standard output, standard error output, and user log	--	8.14 in the uCosminexus Application Server Maintenance and Migration Guide
0x9D00, 0x9D01	DI	10	8.15 in the uCosminexus Application Server Maintenance and Migration Guide
0xA100, 0xA101	Batch application execution functionality	11	8.16 in the uCosminexus Application Server Maintenance and Migration Guide
0xA500 to 0xA5AF	JPA	12	15.11
0xA300 to 0xA305 0xA310 to 0xA315 0xA320 to 0xA323 0xA330 to 0xA331 0xA340 to 0xA363 0xA370 to 0xA381 0xA390 to 0xA3C3	Cosminexus JPA provider	13	15.12
0x842F 0x8430 to 0x8432 0x8825 0x8826 0x8B86, 0x8B87 0x8B8A to 0x8B93 0xAA00 to 0xAA06 0xAA08 to 0xAA0D 0xAA10 to 0xAA19	TP1 inbound integrated function	14	8.17 in the uCosminexus Application Server Maintenance and Migration Guide
0xA600 to 0xA60F 0xA610 to 0xA619 0xA61E, 0xA61F 0xA620 to 0xA62F 0xA630 to 0xA63F 0xA640 to 0xA64F 0xA650 to 0xA65F 0xA660 to 0xA667 0xA61A, 0xA61B 0xA668 to 0xA66F 0xA670 to 0xA67F 0xA686 to 0xA68D 0xA692 to 0xA69B 0xA69E, 0xA69F 0xA6A0, 0xA6A1 0xA6A6 to 0xA6AB	Cosminexus JMS Provider	15	8.18 in the uCosminexus Application Server Maintenance and Migration Guide
0xAD00 to 0xAD15 0xAD80 to 0xAD93	JavaMail	16	8.19 in the uCosminexus Application Server Maintenance and Migration Guide
0xAF00 to 0xAF13	JSF	17	8.20 in the uCosminexus Application Server Maintenance and Migration Guide
0xb002 to 0xb009	CDI	18	15.13

Legend:: --: Not applicable
#: Corresponds to the numbers in Figure 15-2 through Figure 15-5.

The following figures show the function layers for which the PRF trace is output, and the trace collection points for each system configuration.

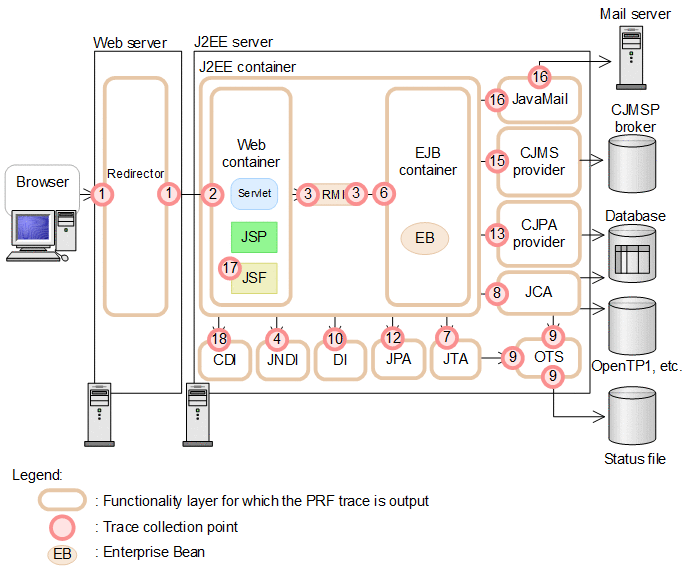

Figure 15‒2: Function layers and trace collection points (in the case of Web client configuration)

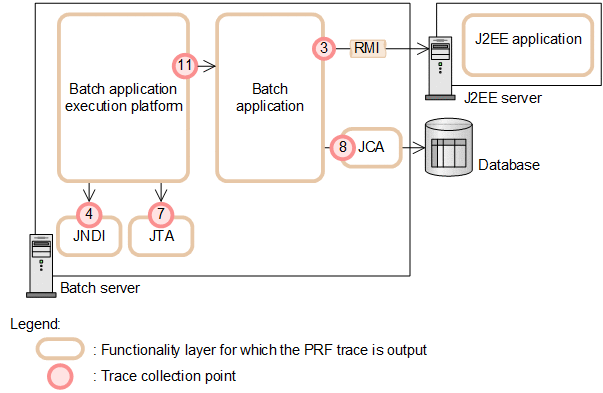

Figure 15‒3: Function layers and trace collection points (in the case of a system for executing batch applications)

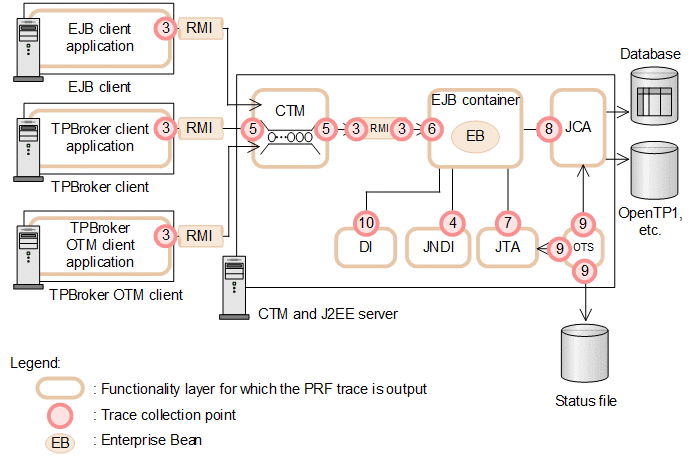

Figure 15‒4: Function layers and trace collection points (in the case of EJB client, TPBroker client, or TPBroker OTM client configuration (CTM usage))

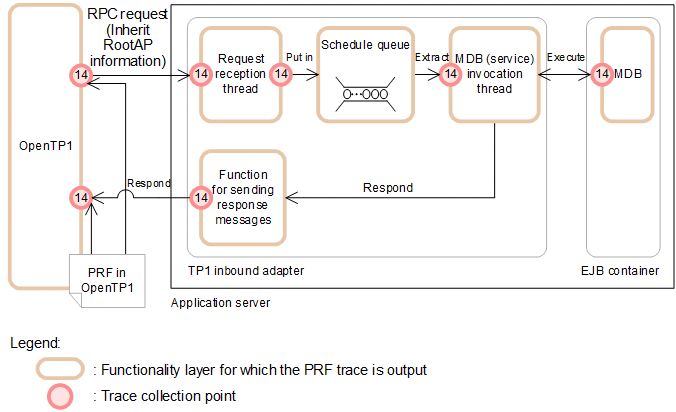

Figure 15‒5: Functionality layers and trace collection points (In the TP1 inbound integrated function)

The trace collection points are divided in detail in each function layer, and the PRF trace collection level differs depending on the trace collection point. For details about trace collection points of each function layer, and the PRF trace collection level, see the references described in Table 15-6.

Reference note

Apart from the function layers described in Table 15-6, the PRF trace can be collected for some Application Server processes, component software, and related programs as well.

The following table describes the correspondence between the function layers other than those described in Table 15-6 for which the PRF trace can be collected, and their event IDs.

Table 15‒7: Correspondence between event IDs that can collect PRF trace and function layers other than those shown in the preceding table (Event IDs that can be acquired and function layers)
Event ID	Function layer
0x9000 to 0x90FF 0xA400 to 0xA4FF	Cosminexus Web Services - Base
0x9100 to 0x91FF	uCosminexus TP1 Connector TP1/Client/J
0x9200 to 0x92FF	TP1/MQ Access
0x9300 to 0x93FF	Cosminexus RM
0x9800 to 0x9B6E	HCSC server
0x9E00 to 0x9EFF	Service Coordinator Interactive Workflow
0x9F00 to 0x9FFF	HCSC server (Object Access adapter)
0xA000 to 0xA0FF	HCSC server (File adapter)
0xA200 to 0xA2FF	HCSC server (Message Queue adapter)
0xAB00 to 0xABFF 0xAC00 to 0xACFF	HCSC server (FTP adapter)
0xA400 to 0xA4FF	JAX-WS Engine
0xE000 to 0xE0FF	Elastic Application Data store
