8.26.6 When a closing handshake request is received

The following figure shows the trace collection points in WebSocket.

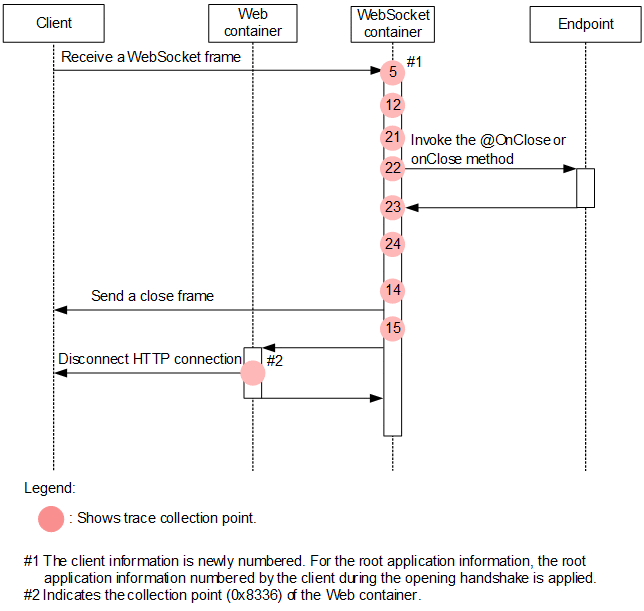

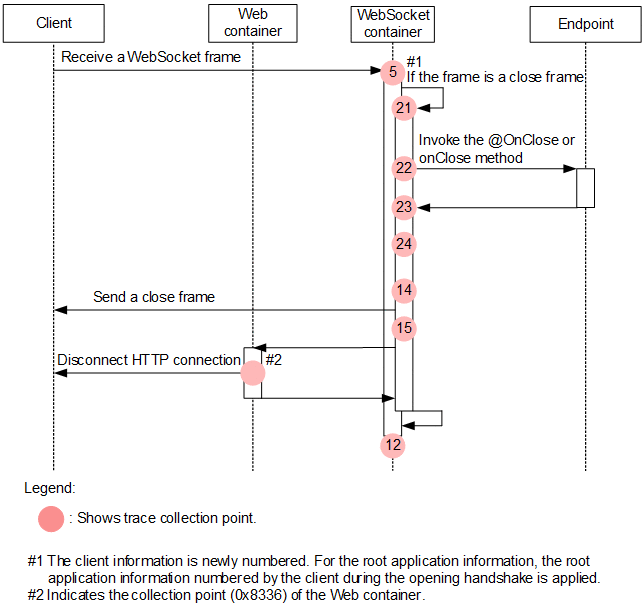

Figure 8‒106: Trace collection points of WebSocket (when a closing handshake request is received (with payload data))

Figure 8‒107: Trace collection points of WebSocket (when a closing handshake request is received (no payload data))

The following table describes the event IDs, trace levels, trace collection points, and information that can be collected.

Table 8‒140: Details of the trace collection points of WebSocket (when a closing handshake request is received)
Event ID	No. in the figures^#	Level	Operation name	Information that you can acquire
Event ID	No. in the figures^#	Level	Operation name	Interface name	Operation name	Optional
0xE102	5	A	Immediately before the start of processing for the received WebSocket frame	READ	--	--
0xE103	12	A	Immediately after the completion of processing for the received WebSoket frame	READ	--	In a normal state: None In an abnormal state: Exception name
0xE112	14	A	Immediately before the WebSocket frame transmission processing starts	WRITE	--	--
0xE113	15	A	Immediately after the WebSocket frame transmission processing is complete	WRITE	--	In a normal state: None In an abnormal state: Exception name
0xE146	21	A	Immediately before the start of processing after receiving or sending a closing handshake request	CLOSE	Cause of disconnection	--
0xE147	24	A	Immediately after the completion of processing after receiving or sending a closing handshake request	CLOSE	Cause of disconnection	In a normal state: None In an abnormal state: Exception name
0xE12A	22	A	Immediately before invoking a method annotated with `@OnClose` or the `onClose` method of the `javax.websocket.Endpoint` implementation class	Class name of the endpoint	Method name	--
0xE12B	23	A	Immediately after the processing of a method annotated with `@OnClose` or of the `onClose` method of the `javax.websocket.Endpoint` implementation class is complete	Class name of the endpoint	Method name	In a normal state: None In an abnormal state: Exception name

Legend:

A: Standard

--: Not applicable

#

Corresponds to the numbers in Figure 8-106, Figure 8-107.
