8.24.1 Trace collection points and trace information that can be collected
The following table describes the event IDs, trace collection points, and PRF trace collection levels.
Event ID |
No. in the figures# |
Trace acquisition points |
Level |
---|---|---|---|
0xD000 |
1 |
At the start of the HTTP method call |
A |
0xD001 |
2 |
At the end of the HTTP method call |
A |
0xD002 |
3 |
Before sending the HTTP message of the client library |
A |
0xD003 |
4 |
After receiving the HTTP message of the client library |
A |
0xD004 |
5 |
Before calling a web resource |
A |
0xD005 |
6 |
After calling a web resource |
A |
- Legend:
-
A: Standard
- #
-
Corresponds to the numbers in Figure 8-95.

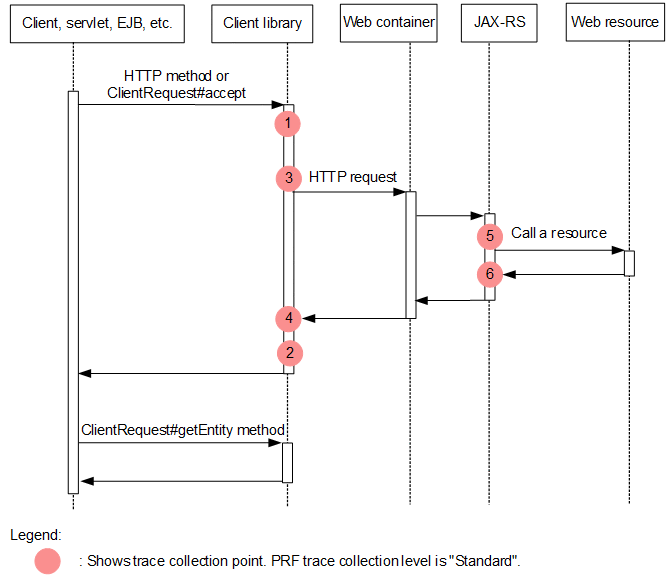

The following figure showsthe trace collection points in JAX-RS.
|
