8. Trace Collection Points and PRF Trace Collection Levels of the Trace Based Performance Analysis
8.20 Trace collection points of JSF 2.2
8.20.1 Trace collection points and the trace information that can be collected

8.20.1 Trace collection points and the trace information that can be collected

The following table describes the event IDs, trace collection points, and PRF trace collection levels.

Table 8‒121: Details of trace collection points of JSF 2.2
Event ID	No. in the figure^#	Trace collection points	Level
0xAF20	1	Immediately before a custom converter is invoked	A
0xAF21	2	Immediately after the processing of the custom converter ends	A
0xAF22	3	Immediately before a custom validator is invoked	A
0xAF23	4	Immediately after the processing of the custom validator ends	A
0xAF24	5	Immediately before `ValueChangeListener` is invoked	A
0xAF25	6	Immediately after the processing of `ValueChangeListener` ends	A
0xAF26	7	Immediately before `ActionListener` is invoked	A
0xAF27	8	Immediately after the processing of `ActionListener` ends	A
0xAF28	9	Immediately before `AjaxBehaviorListener` is invoked	A
0xAF29	10	Immediately after the processing of `AjaxBehaviorListener` ends	A
0xAF2A	11	Immediately before `Action Method` is invoked	A
0xAF2B	12	Immediately after the processing of `Action Method` ends	A
0xAF2C	13	Immediately before `ComponentSystemEventListener` is invoked	A
0xAF2D	14	Immediately after the processing of `ComponentSystemEventListener` ends	A

Legend:: A: Standard
#: Corresponds to the numbers in Figure 8-84 through Figure 8-90.

The following figures show the trace collection points of JSF 2.2.

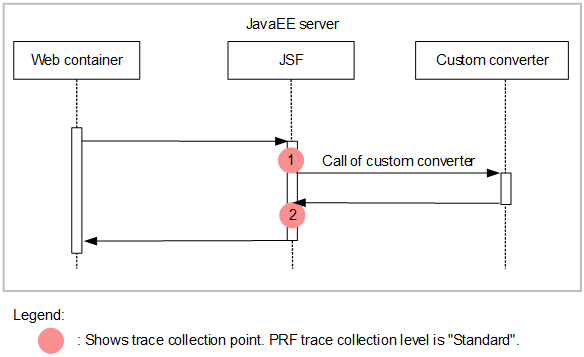

Figure 8‒84: Collection points for trace-based performance analysis for JSF 2.2 (custom converter)

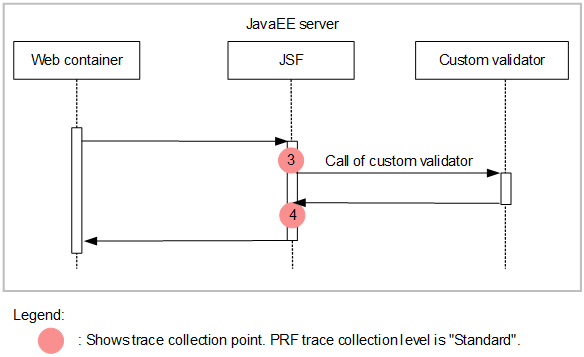

Figure 8‒85: Collection points for trace-based performance analysis for JSF 2.2 (custom validator)

Figure 8‒86: Collection points for trace-based performance analysis for JSF 2.2 (ValueChangeListener)

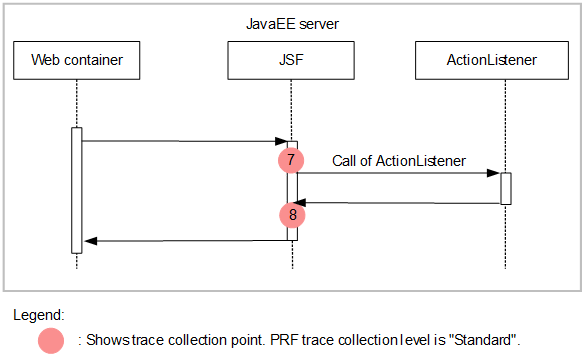

Figure 8‒87: Collection points for trace-based performance analysis for JSF 2.2 (ActionListener)

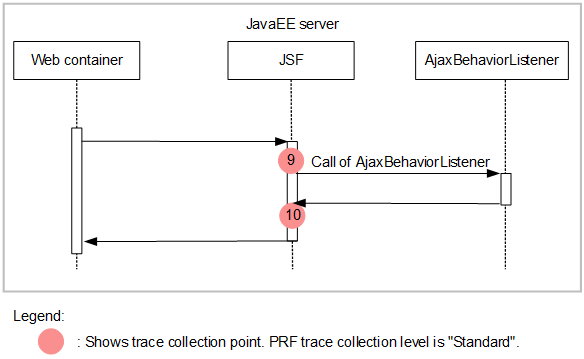

Figure 8‒88: Collection points for trace-based performance analysis for JSF 2.2 (AjaxBehaviorListener)

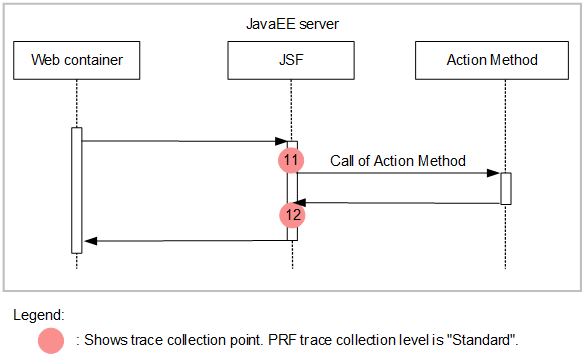

Figure 8‒89: Trace collection points for JSF (Action Method)

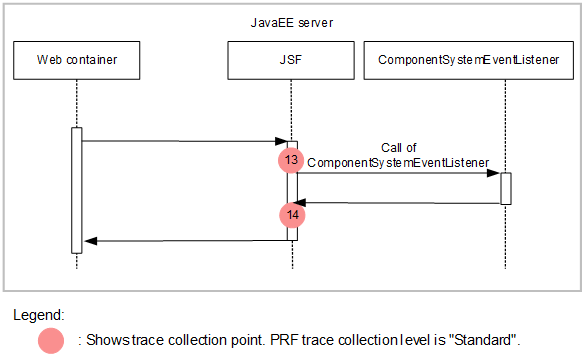

Figure 8‒90: Trace collection points for JSF 2.2 (ComponentSystemEventListener)
