8.18.5 Trace collection points of CJMSP Broker when connecting to the CJMSP resource adapter and the trace information that can be collected

Organization of this subsection

(1) Trace collection points and PRF trace collection levels

The following table describes the event IDs, trace collection points, and PRF trace collection levels.

Table 8‒112: Details of trace collection points in CJMSP Broker when connecting to the CJMSP resource adapter
Event ID	Number in the figure^#	Trace collection points	Level
0xA678	1	When the processing of `ResourceAdapter.start(ctx)` starts	A
0xA679	4	When the processing of `ResourceAdapter.start(ctx)` ends	A
0xA67A	5	When the processing of `ResourceAdapter.stop()` starts	A
0xA67B	8	When the processing of `ResourceAdapter.stop()` ends	A
0xA67C	2	Invocation by CJMSP Broker immediately before invoking the `hello` method	A
0xA67D	3	Invocation by CJMSP Broker just after invoking the `hello` method	A
0xA67E	6	Invocation by CJMSP Broker immediately before invoking the `good bye` method	A
0xA67F	7	Invocation by CJMSP Broker just after invoking the `good bye` method	A

Important note: The event IDs 0xA67C and 0xA67D are also output when CJMSP Broker and the CJMSP resource adapter are communicating in order to establish the connection.

The following figure shows the trace collection points in CJMSP Broker when connecting to the CJMSP resource adapter.

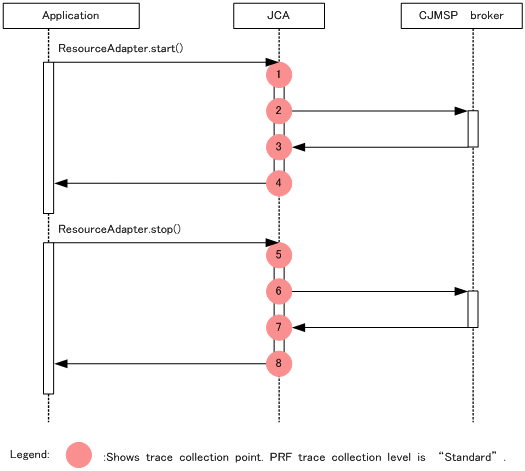

Figure 8‒75: Trace collection points of CJMSP Broker when connecting to the CJMSP resource adapter

Trace information (interface name, operation name, and option) cannot be collected for CJMSP Broker when connecting to the CJMSP resource adapter.
