8.17.1 Trace collection points and PRF trace collection levels
The following table describes the event IDs, trace collection points, and PRF trace collection levels:
- Organization of this subsection
(1) Details of trace collection points of the TP1 inbound integrated function
The following table describes the details of trace collection points of the TP1 inbound integrated function.
Event ID |
Number in the figure# |
Trace collection point |
Level |
---|---|---|---|
0x842F |
19 |
Immediately after invoking the message listener method of Message-driven Bean from the resource adapter |
A |
0x8430 |
22 |
Immediately before the message listener method of Message-driven Bean that is invoked from the resource adapter returns |
A |
0x8431 |
20 |
Immediately before the EJB container calls back the message listener method of Message-driven Bean |
A |
0x8432 |
21 |
Immediately after returning from the callback of the message listener method of Message-driven Bean |
A |
0x8825 |
17 |
Immediately before the completion of recreate process of the transaction |
B |
0x8826 |
18 |
Immediately after the completion of recreate process of the transaction |
B |
0x8B86 |
14 |
Immediately after invoking the method of javax.resource.spi.work.WorkManager |
A |
0x8B87 |
15 |
Immediately before returning the method of javax.resource.spi.work.WorkManager |
A |
0x8B8A |
16 |
Immediately before invoking the method of javax.resource.spi.work.Work |
A |
0x8B8B |
29 |
Immediately after returning the method of javax.resource.spi.work.Work |
A |
0x8B8C |
33 |
Immediately after invoking javax.resource.spi.XATerminator.prepare (Xid xid) |
B |
0x8B8D |
34 |
Immediately before returning javax.resource.spi.XATerminator.prepare (Xid xid) |
B |
0x8B8E |
-- |
Immediately after invoking javax.resource.spi.XATerminator.commit (Xid xid, boolean onePhase) |
B |
0x8B8F |
-- |
Immediately before returning javax.resource.spi.XATerminator.commit (Xid xid, boolean onePhase) |
B |
0x8B90 |
-- |
Immediately after invoking javax.resource.spi.XATerminator.rollback (Xid xid) |
B |
0x8B91 |
-- |
Immediately before returning javax.resource.spi.XATerminator.rollback (Xid xid) |
B |
0x8B92 |
-- |
Immediately after invoking javax.resource.spi.XATerminator.forget (Xid xid) |
B |
0x8B93 |
-- |
Immediately before returning javax.resource.spi.XATerminator.forget (Xid xid) |
B |
0xAA00 |
8 |
Immediately after the message reception starts |
A |
0xAA01 |
12 |
Immediately after the sending of RPC response is completed |
A |
0xAA02 |
4 |
Immediately after the reading of the message from OpenTP1 starts |
A |
0xAA03 |
10 |
Immediately before disconnecting from OpenTP1 (when rpc_close_after_send=Y is specified in OpenTP1 definition) |
A |
0xAA04 |
5 |
Immediately before invoking socket read |
B |
0xAA05 |
6 |
Immediately after completing socket read |
B |
0xAA06 |
13 |
Immediately before inserting the message into the schedule queue once the message reception is completed. |
A |
0xAA08 |
23 |
Immediately before the sending of RPC response starts |
A |
0xAA09 |
27 |
Immediately before disconnecting the connection for response (when rpc_close_after_send=true is specified in TP1 inbound adaptor property) |
A |
0xAA0A |
25 |
Immediately before invoking socket write |
B |
0xAA0B |
26 |
Immediately after completing socket write |
B |
0xAA0C |
30 |
Sending has failed. Immediately before the standby for retry starts |
A |
0xAA0D |
31 |
Immediately before retry starts |
A |
0xAA10 |
11 |
|
A |
0xAA11 |
28 |
Immediately after an attempt to send the RPC response fails |
A |
0xAA12 |
2 |
Immediately before including the connection with OpenTP1 in reception monitoring |
B |
0xAA13 |
3 |
When message reception is detected in the connection with OpenTP1 |
B |
0xAA14 |
32 |
Immediately after the completion of reception from OpenTP1 during synchronization point processing |
A |
0xAA15 |
35 |
Immediately after the completion of sending to OpenTP1 during synchronization point processing or immediately after an error occurs in the sending process |
A |
0xAA16 |
1 |
Immediately after the connection with OpenTP1 is established |
A |
0xAA17 |
9 |
Immediately before disconnecting the connection with OpenTP1 or immediately after disconnection from OpenTP1, since a communication error is detected |
A |
0xAA18 |
7 |
Immediately after analyzing the received message |
B |
0xAA19 |
24 |
Immediately before sending the message |
B |
- Legend:
-
A: Standard
B: Advanced
--: Not applicable
- #
-
Corresponds to the numbers from Figures 8-64 to 8-70.
(2) Trace collection points of the TP1 inbound integrated function

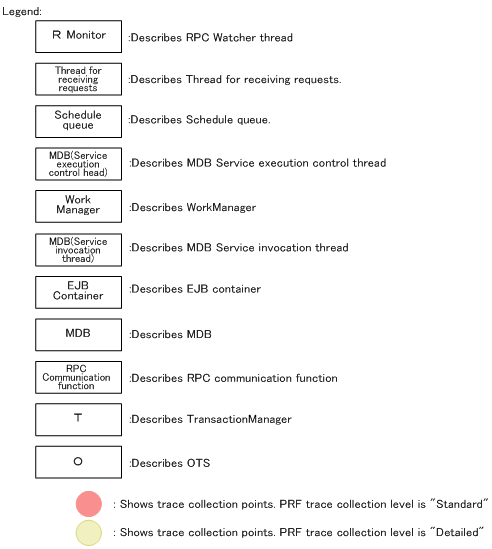

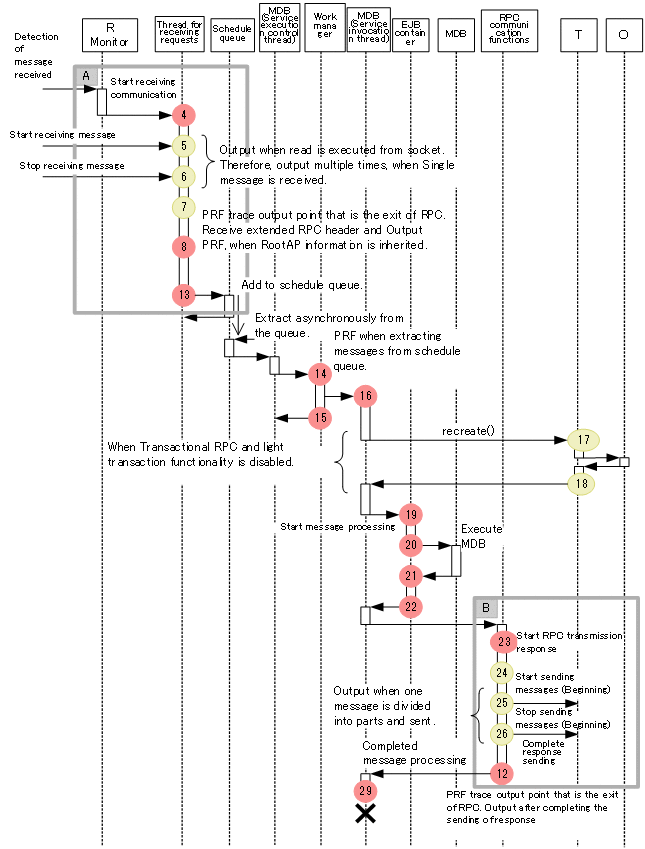

The following figure shows the overall trace collection points in the TP1 inbound integrated function. Note that there are detailed trace collections points for A and B parts of the figure.
|
The following two figures show the detailed trace collections points for A and B parts in the above figure.
|
- #1
-
Nothing is output, if an exception occurs in read.
- #2
-
This is output after message reception. For segmented mails, the output is generated for each segmented mail. However, nothing is output for invalid messages.
- #3
-

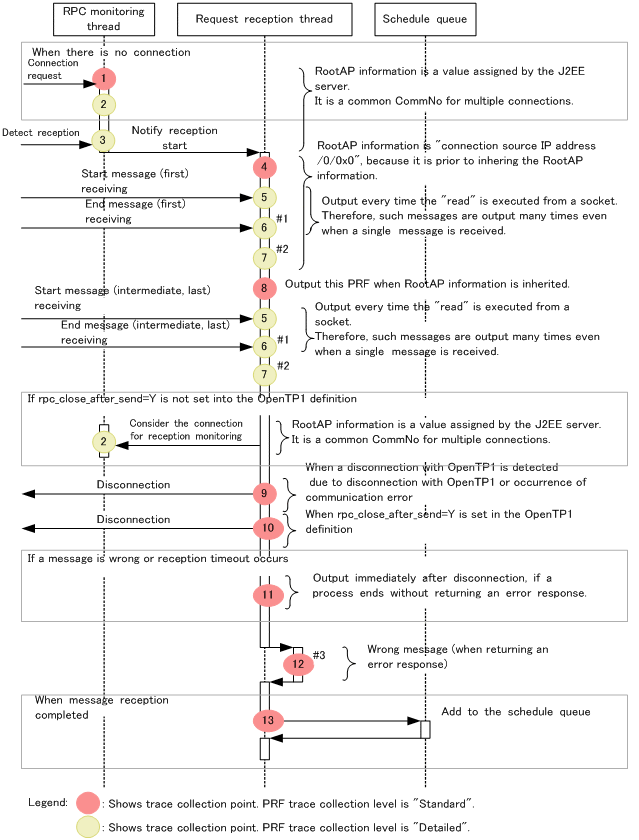

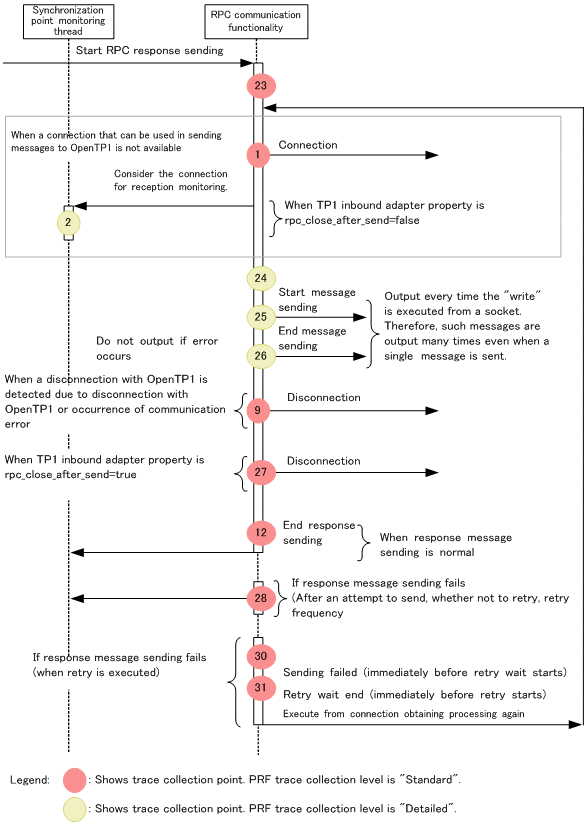

For processing of RPC response sending (PRF trace collection points other than 0xAA01), see Figure 8-66.
In addition to Figure 8-65, the PRF trace collection point for RPC reception is 0xAA10 that is output immediately after the reception timer monitoring thread detects a reception timeout for RPC requests and destroys the message.
|
For the PRF trace output point of response sending in Figure 8-66, the trace is not only output during RPC communication, but also when J2EE applications stop. The root application information at this time is not the root application information inherited from OpenTP1, but the root application information generated by the J2EE server. Therefore, use the root application information, output to the interface name of 0xAA08 when the J2EE applications stop, to associate the PRF trace output points for stopping J2EE applications and the other PRF trace output points for RPC communication.
(3) Trace point collection in synchronous point processing

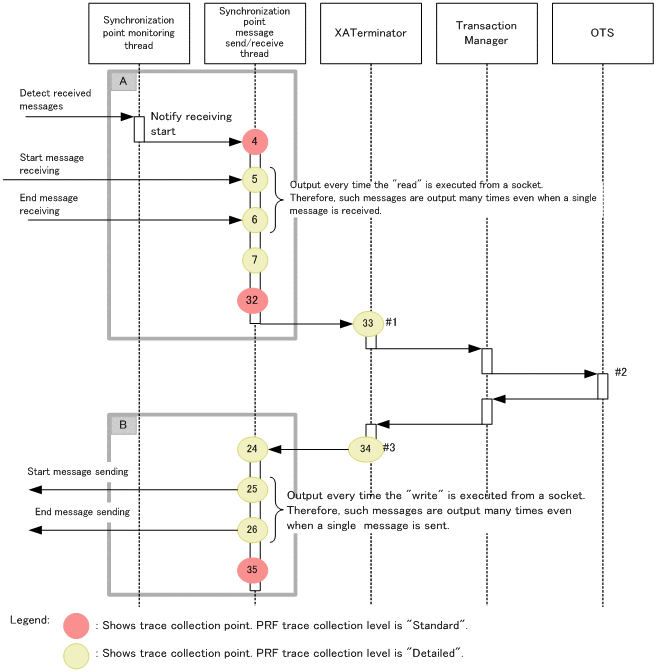

The following figure describes the trace collection points in the synchronous point processing. Note that points A and B in the figure have further detailed trace collection points.
|
- #1
-
When the processing request is passed on to XATerminator, different Event IDs are output for each method. The following table describes the mapping between each method and its Event ID.
Table 8‒102: Method and Event ID mapping Method
Event ID
Number used in the figure
prepare method
0x8B8C
33
commit method
0x8B8E
--
rollback method
0x8B90
--
forget method
0x8B92
--
- Legend:
-
--: Not used in the figure
- #2
-
For OTS output points, see 8.13 Trace collection points of an OTS.
- #3
-
When the processing request is passed on from XATerminator to the synchronous point mail sending thread, different Event IDs are output for each method. The following table describes the mapping between each method and its Event ID.
Table 8‒103: Method and Event ID mapping Method
Event ID
Number used in the figure
prepare method
0x8B8D
34
commit method
0x8B8F
--
rollback method
0x8B91
--
forget method
0x8B93
--
- Legend:
-
--: Not used in the figure

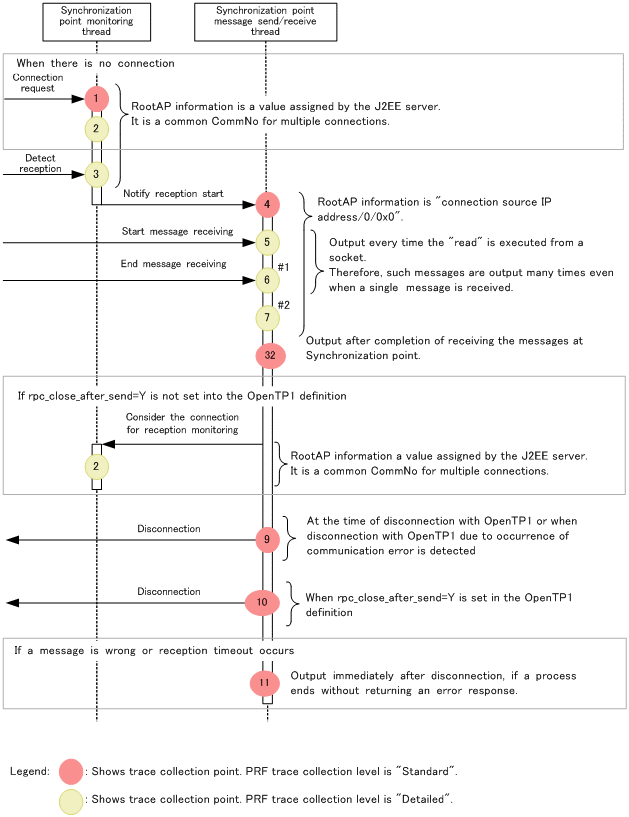

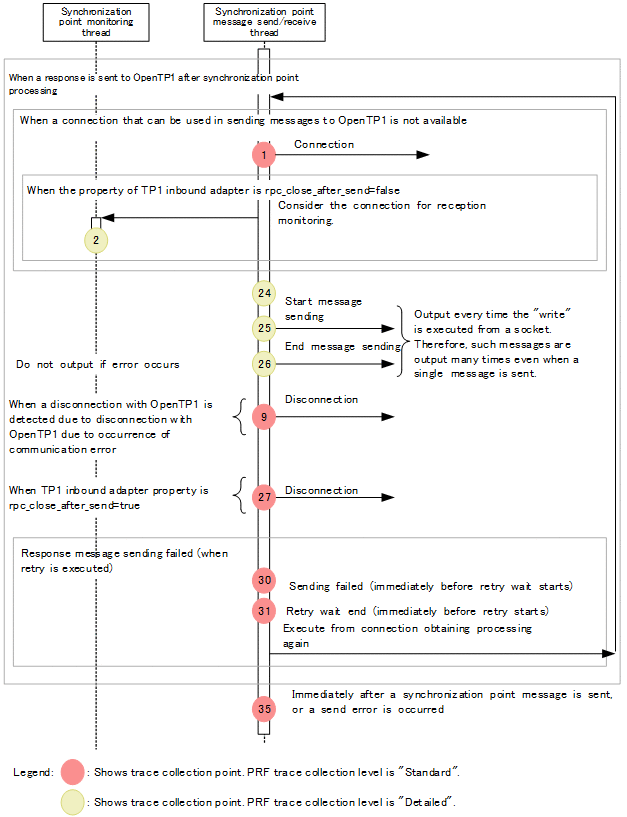

For the detailed trace collection points of A and B in the figure, see the following 2 figures.
|
- #1
-
Nothing is output, if read throws an exception.
- #2
-
Outputs after receiving the mail. For segmented mails, output is generated for each segmented mail. However, nothing is output, for invalid mails.
Figure 8‒69: Trace collection point of the B part in the synchronous point processing

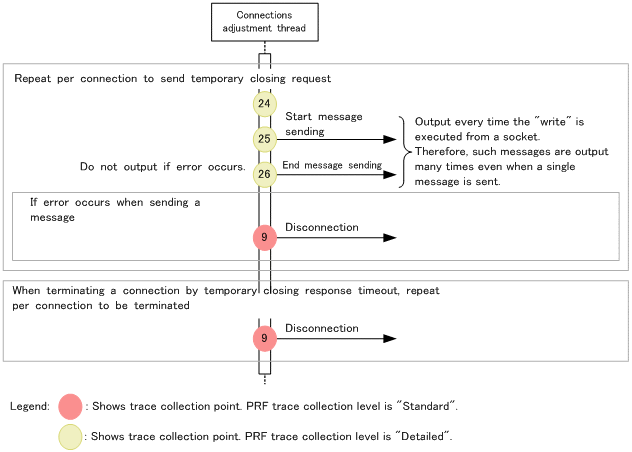

The following figure shows the trace collection points for the connection count adjustment thread.
|
