8.16.1 Trace Get Point and the PRF Trace Get Level
The following table describes the event IDs, trace collection points, and PRF trace collection levels.
|
Event ID |
Number in the figure#1 |
Trace acquisition point |
Level |
|---|---|---|---|
|
0x8E05 |
1#2 |
Just after receiving the batch application execution request |
A |
|
0xA100 |
2 |
Immediately before the execution of the batch application |
A |
|
0xA101 |
3 |
Immediately after the termination of the batch application |
A |
|
0x8E06 |
4#2 |
Immediately before sending the termination results of the batch application |
A |
- Legend:
-
A: Standard
- #1
-
Corresponds to the numbers in Figure 8-63.
- #2
-
The trace is only collected when the scheduling function is used.

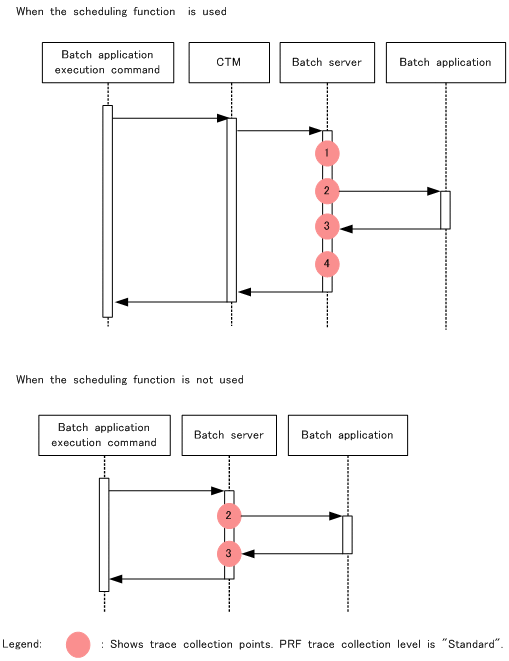

The following figure shows the trace collection points in the batch application execution functionality.
|
|
![[Figure]](GRAPHICS/ZU074700.GIF)
