8.15.1 Trace Get Point and the PRF Trace Get Level
The following table describes the event IDs, trace collection points, and PRF trace collection levels.
|
Event ID |
No. in the figure# |
Trace acquisition points |
Level |
|---|---|---|---|
|
0x9D00 |
1 |
Immediately before injecting the dependency |
A |
|
0x9D01 |
2 |
Immediately after injecting the dependency |
A |
- Legend:
-
A: Standard
- #
-
Corresponds to the numbers in Figure 8-62.

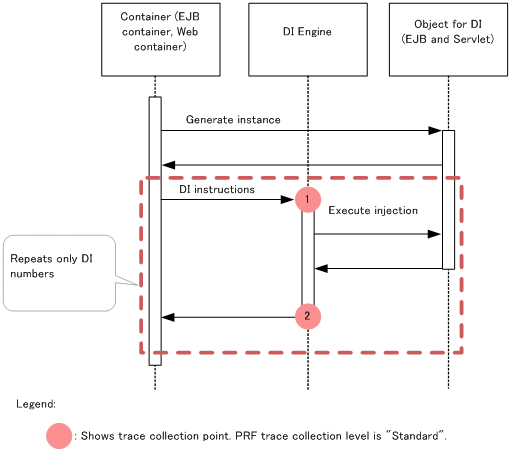

The following figure shows the trace collection points in a DI.
|
|
![[Figure]](GRAPHICS/ZU074600.GIF)
