8.12.1 Trace get point and the PRF trace get level

The following table describes the event IDs, trace collection points, and PRF trace collection levels.

Table 8‒89: Details of trace collection points in an RMI
Event ID	No. in the figure^#	Trace acquisition points	Level
0x8E01	1	When the process for sending a request with the stub starts	A
0x8E02	6	When the process for receiving a response with the stub is complete	A
0x8E03	2	During the processing for sending the request at the client side	A
0x8E04	5	During the processing for receiving the response at the client side	A
0x8E05	3	During the processing for receiving the request at the server side	A
0x8E06	4	During the processing for sending the response at the server side	A

The following figure shows the trace collection points in an RMI.

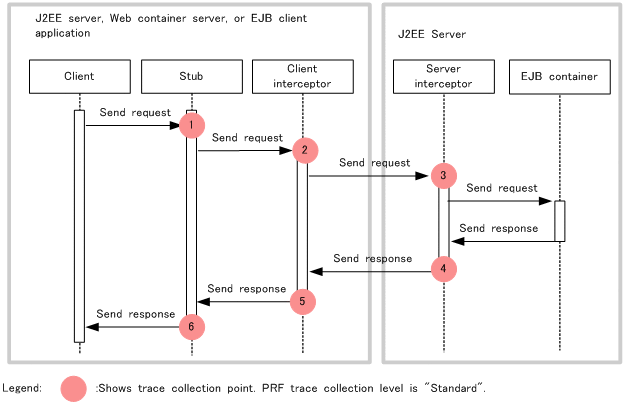

Figure 8‒53: Trace collection points of an RMI
