8.11.6 Trace collection points and trace information that can be collected when work management is used

This subsection describes the trace collection points and the trace information that can be collected when work management is used in a resource adapter conforming to Connector1.5.

Note that if you are using a resource adapter other than the product resource adapter, new numbers will be allotted to the root AP information when 0x8B86 is output. If the <resourceadapter>-<resourceadapter-class> value of DD (ra.xml) starts with "com.hitachi" or "com.cosminexus", the resource adapter will be considered as a product resource adapter.

The root AP information set at the entrance of MDB container is treated as the root AP information of Work, if you invoke Message-driven Bean from Work. Individual Message-driven Bean processing is distinguished by the thread ID.

Organization of this subsection

(1) Trace get point and the PRF trace get level
(2) Trace information that can be collected

(1) Trace get point and the PRF trace get level

The following table describes the event IDs, trace collection points, and PRF trace collection levels.

Table 8‒87: Details of trace collection points in a DB Connector and JCA container (when work management is used)
Event ID	No. in the figure^#	Trace acquisition points	Level
0x8B86	1	Immediately after invoking a method of `javax.resource.spi.work.WorkManager`	A
0x8B87	6, 9, 14	Immediately before the return of the method of `javax.resource.spi.work.WorkManager`	A
0x8B88	2, 4, 7, 12	Immediately before invoking a method of `javax.resource.spi.work.WorkListener`	B
0x8B89	3, 5, 8, 13	Immediately after the return of the method of `javax.resource.spi.work.WorkListener`	B
0x8B8A	10	Immediately before invoking a method of `javax.resource.spi.work.Work`	A
0x8B8B	11	Immediately after the return of the method of `javax.resource.spi.work.Work`	A

Legend:

A: Standard

B: Advanced

#

Corresponds to the numbers in Figure 8-50 through Figure 8-52.

The following figure shows the trace collection points.

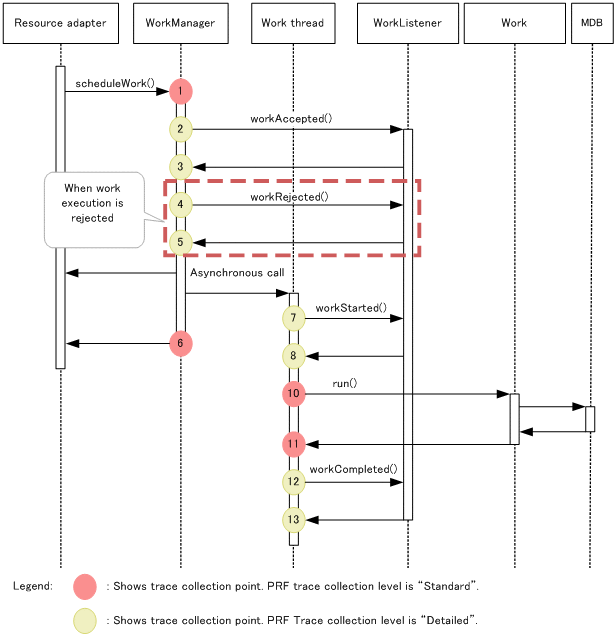

Figure 8‒50: Details of trace collection points in a DB Connector and JCA container (when scheduleWork() is invoked)

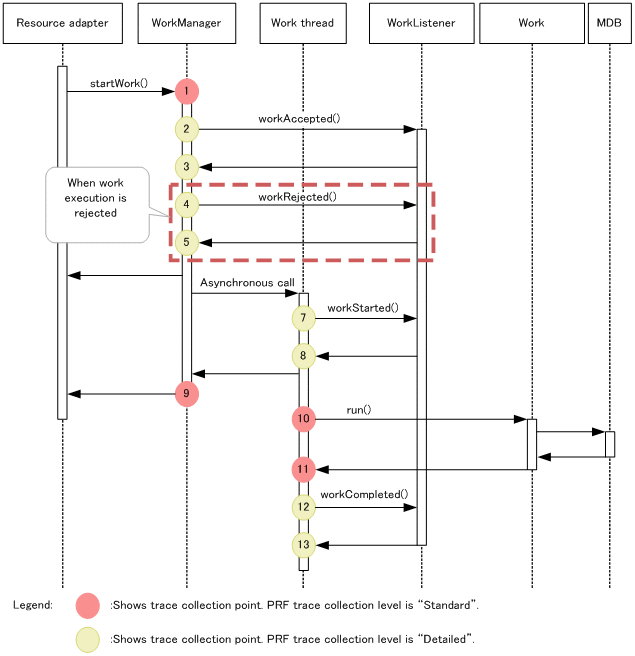

Figure 8‒51: Details of trace collection points in a DB Connector and JCA container (when startWork() is invoked)

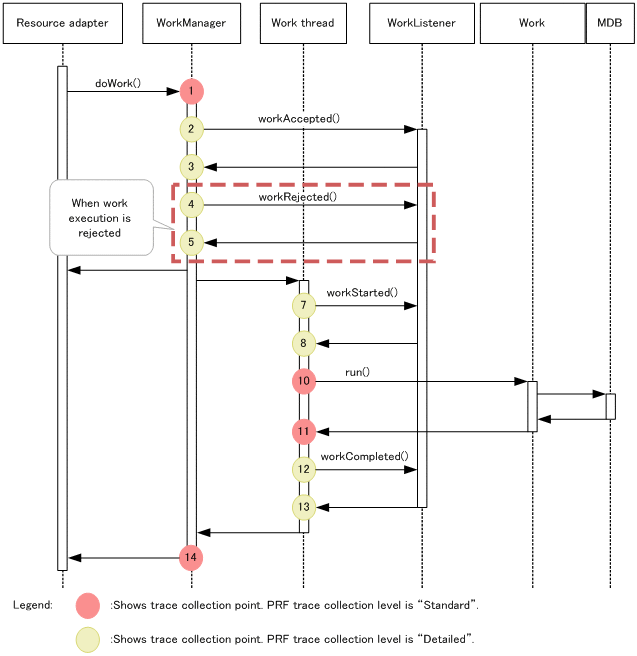

Figure 8‒52: Details of trace collection points in a DB Connector and JCA container (when doWork() is invoked)

To Page Top

(2) Trace information that can be collected

The following table describes the trace information that can be collected.

Table 8‒88: Details of trace collection points in a DB Connector and JCA container (when work management is used)
No. in the figure^#1	Event ID	Level	Information that you can acquire
No. in the figure^#1	Event ID	Level	Interface name	Operation name	Optional
1	0x8B86	A	Work class name	Method name	Display name of the resource adapter
2	0x8B88	B	Work class name	Method name	Display name of the resource adapter^#²
3	0x8B89	B	Work class name	Method name	When normal: `Entrance-time` For an exception: `Entrance-time exception-name`
4	0x8B88	B	Work class name	Method name	Display name of the resource adapter^#2
5	0x8B89	B	Work class name	Method name	When normal: `Entrance-time` For an exception: `Entrance-time exception-name`
6	0x8B87	A	Work class name	Method name
7	0x8B88	B	Work class name	Method name	Display name of the resource adapter^#²
8	0x8B89	B	Work class name	Method name	When normal: `Entrance-time` For an exception: `Entrance-time exception-name`
9	0x8B87	A	Work class name	Method name
10	0x8B8A	A	Work class name	Method name	Display name of the resource adapter^#²
11	0x8B8B	A	Work class name	Method name	When normal: `Entrance-time` For an exception: `Entrance-time exception-name`
12	0x8B88	B	Work class name	Method name	Display name of the resource adapter^#²
13	0x8B89	B	Work class name	Method name	When normal: `Entrance-time` For an exception: `Entrance-time exception-name`
14	0x8B87	A	Work class name	Method name

Legend:

A: Standard

B: Advanced

#1

Corresponds to the numbers from Figure 8-50 to Figure 8-52.

#2

In the case of a resource adapter included in the application, application-name: display-name-of-resource-adapter is displayed.
