8.9.1 Trace Get Point and the PRF Trace Get Level
The following table describes the event IDs, trace collection points, and PRF trace collection levels.
|
Event ID |
No. in the figure# |
Trace acquisition points |
Level |
||
|---|---|---|---|---|---|
|
0x8603 |
1 |
When searching the name space in JNDI, or the CORBA Naming Service |
javax.naming.Context.lookup |
Immediately after invocation |
A |
|
0x8604 |
2 |
Immediately before return |
A |
||
|
0x8605 |
1 |
javax.naming.Context.list |
Immediately after invocation |
B |
|
|
0x8606 |
2 |
Immediately before return |
B |
||
|
0x8607 |
1 |
javax.naming.Context.listBindings |
Immediately after invocation |
B |
|
|
0x8608 |
2 |
Immediately before return |
B |
||
|
0x8609 |
1 |
When searching the name space in which javax.ejb.EJBLocalHome is saved |
javax.naming.Context.lookup |
Immediately after invocation |
A |
|
0x860A |
2 |
Immediately before return |
A |
||
|
0x860B |
1 |
javax.naming.Context.list |
Immediately after invocation |
B |
|
|
0x860C |
2 |
Immediately before return |
B |
||
|
0x860D |
1 |
javax.naming.Context.listBindings |
Immediately after invocation |
B |
|
|
0x860E |
2 |
Immediately before return |
B |
||
|
0x860F |
1 |
When searching the Java name space: java |
javax.naming.Context.lookup |
Immediately after invocation |
A |
|
0x8610 |
2 |
Immediately before return |
A |
||
|
0x8611 |
1 |
javax.naming.Context.list |
Immediately after invocation |
B |
|
|
0x8612 |
2 |
Immediately before return |
B |
||
|
0x8613 |
1 |
javax.naming.Context.listBindings |
Immediately after invocation |
B |
|
|
0x8614 |
2 |
Immediately before return |
B |
||
|
0x8615 |
1 |
When using the round-robin search functionality |
javax.naming.Context.lookup |
Immediately after invocation |
A |
|
0x8616 |
2 |
Immediately before return |
A |
||
|
0x8617 |
1 |
When using the CORBA Naming Service switch functionality |
javax.naming.Context.lookup |
Immediately after invocation |
A |
|
0x8618 |
2 |
Immediately before return |
A |
||
|
0x8619 |
1 |
javax.naming.Context.list |
Immediately after invocation |
B |
|
|
0x861A |
2 |
Immediately before return |
B |
||
|
0x861B |
1 |
javax.naming.Context.listBindings |
Immediately after invocation |
B |
|
|
0x861C |
2 |
Immediately before return |
B |
||
- Legend:
-
A: Standard
B: Advanced
- #
-
Corresponds to the numbers in Figure 8-38.

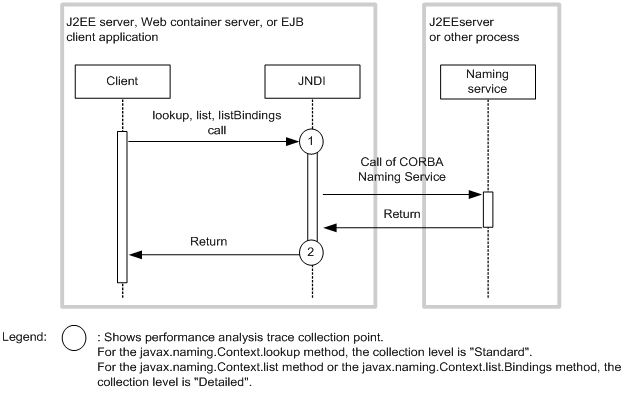

The following figure shows the trace collection points in a JNDI.
|
|
![[Figure]](GRAPHICS/ZU072600.GIF)
