8.8.3 In the case of a Message-driven Bean (EJB2.1 and later)
This subsection describes the trace collection points of a Message-driven Bean (EJB2.1 and later), and also the trace information that can be collected.
- Organization of this subsection
(1) Trace collection points and PRF trace collection levels
The following table describes the event IDs, trace collection points, and PRF trace collection levels.
Event ID |
No. in the figures# |
Trace acquisition points |
Level |
---|---|---|---|
0x842D |
1 |
Immediately after invoking the beforeDelivery() method of the Message-driven Bean |
A |
0x842E |
2 |
Immediately before the return the beforeDelivery() method of the Message-driven Bean |
A |
0x842F |
3 |
Immediately after invoking the method of message listener of the Message-driven Bean from the resource adapter |
A |
0x8431 |
4 |
Immediately before the EJB container calls back the method of message listener of the Message-driven Bean |
A |
0x8432 |
5 |
Immediately after returning from the callback of the method of message listener of the Message-driven Bean |
A |
0x8430 |
6 |
Immediately before the return of the method of message listener of the Message-driven Bean that is invoked from the resource adapter |
A |
0x8433 |
7 |
Immediately after invoking the beforeDelivery() method of the Message-driven Bean |
A |
0x8434 |
8 |
Immediately before the return the beforeDelivery() method of the Message-driven Bean |
A |
- Legend:
-
A: Standard
- #
-
Corresponds to the numbers in Figure 8-19 and Figure 8-20.

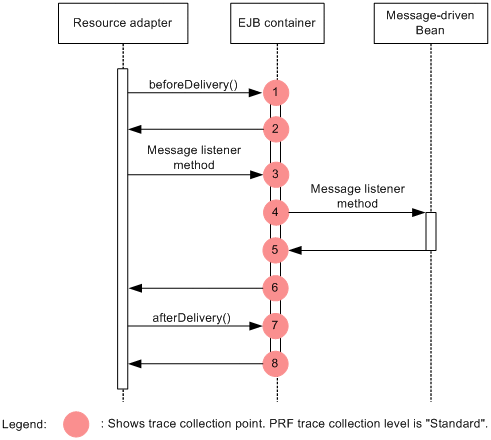

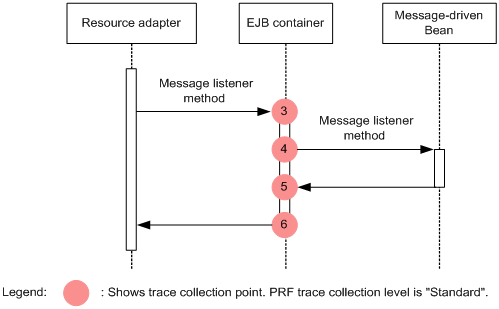

The following figure shows the trace collection points in a Message-driven Bean (EJB2.1 and later).
|
# Indicates the message delivery option described in Connector 1.5 specifications.
|
# Indicates the message delivery option described in Connector 1.5 specifications.
(2) Trace information that can be collected
The following table describes the trace information that can be collected in a Message-driven Bean (EJB2.1 and later).
No. in the figures# |
Event ID |
Level |
Information that you can acquire |
||
---|---|---|---|---|---|
Interface name |
Operation name |
Optional |
|||
1 |
0x842D |
A |
Bean name |
-- |
-- |
2 |
0x842E |
A |
Bean name |
-- |
|
3 |
0x842F |
A |
Bean name |
Method name |
-- |
4 |
0x8431 |
A |
Bean name |
Method name |
-- |
5 |
0x8432 |
A |
Bean name |
Method name |
|
6 |
0x8430 |
A |
Bean name |
Method name |
|
7 |
0x8433 |
A |
Bean name |
-- |
-- |
8 |
0x8434 |
A |
Bean name |
-- |
|
- Legend:
-
A: Standard
--: Not applicable
- #
-
Corresponds to the numbers in Figure 8-19 and Figure 8-20.
