5.11.5 Contents Output when Output Level is Debug

This subsection describes the contents output for each event when you specify debug in log output level.

Supplement: Use debug, for detail information besides the contents output to verbose, while implementing by debugging. In the logs output within debug, there are some logs with high overheads than that of the logs that require execution of Full GC for output.

Organization of this subsection

(1) Migration of object to Java heap by the explicit release of Explicit memory block
(2) Initialization of Explicit memory block (Output detail information)
(3) Details of automatic release processing of the Explicit memory block (Output detailed information)

(1) Migration of object to Java heap by the explicit release of Explicit memory block

If you want to refer an object in Explicit memory block from the Explicit memory block that is not the target for explicit release, move that object to Java heap for explicitly releasing the Explicit memory block. This log does output of information of object moved to Java heap and object of the reference source.

(a) Output trigger

Output is triggered when an object is moved to Java heap in the explicit release process of Explicit memory block.

(b) Output format

[EDO][eid=<EID>: Reference to <REFED_NAME>(<REFED_PTR>), total <R_SIZE>]
[EDO] <REF_NAME>(<REF_PTR>)<REF_GEN>

Note:: Output for each object referred by Explicit memory block that is not the target for explicit release.

(c) Output items

The following table describes each item indicated in (b) output trigger.

Table 5‒51: Output items (Migration of objects to Java heap as a result of the explicit release of Explicit memory block)
Output items	Output contents	Meaning
`<EID>`	`<const>`	Output ID of the Explicit memory block that has objects referred from other Explicit heap and that are not target for explicit release in the Explicit memory block explicit release process.
`<REFED_NAME>`	`<letters>`	Output all class names of objects (Objects shown in<`REF_NAME`>(<`REF_PTR`>) ) referred from objects other than Explicit heap that are not target for explicit release in Explicit memory block explicit release process.
`<REFED_PTR>`	`<ptr>`	Output memory address before migration of objects indicating <`REFED_NAME`> to Java heap.
`<R_SIZE>`	`<const>K`	Output total size of objects to be moved to Java heap by referring from <`REF_NAME`>(<`REF_PTR`>). Total size is the value including the objects in the Explicit memory block that are to be released explicitly and objects that are indirectly referred from <`REF_NAME`>(<`REF_PTR`>)^#. The unit is kilo bytes.
`<REF_NAME>`	`<letters>\|JVM`	Output all class names of objects referring <`REFED_NAME`>(<`REFED_PTR`>). Output as "JVM" when reference source is stack or internal JavaVM.
`<REF_PTR>`	`<ptr>`	Output object indicating <`REF_NAME`>, stack or memory address in JavaVM.
`<REF_GEN>`	`(eid=<EID>)\|(DefNew)\|(Tenured)\|(JVM)`	Output area belonging to <`REF_NAME`>(<`REF_PTR`>) or generation name. Output ID of Explicit memory block for Explicit memory block. Output "JVM" when referred from stack or JavaVM.

#: Also refer to the following supplement:

Supplement

This supplement gives an overview when there are many reference routes to an object moving to Java heap.

The description is provided with following figure as an example.

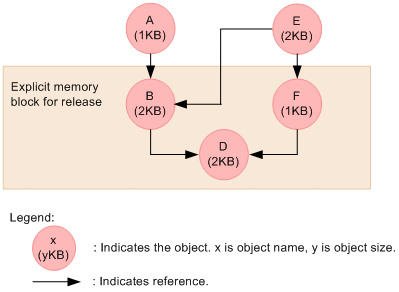

Figure 5‒9: Example where there are multiple reference routes to object moving to Java heap

Output when object to be moved to Java heap is referred from multiple objects

There are cases when the objects to be moved to Java heap are referred from multiple objects. In the figure, there are two types; A->B and E->B of reference routes for object B.

In such cases, the information related to reference of A->B, E->B is output separately in logs.

<R_SIZE> calculation when there is indirect referring from multiple objects

Output value that includes objects in the Explicit memory block that are to be released explicitly and objects that are referred indirectly from <REF_NAME>(<REF_PTR>) in <R_SIZE>. However, the calculation method differs when object to be moved to Java heap is indirectly referred from multiple objects.

In the figure, object D is indirectly referred by the following three types of routes:

A->B->D
E->B->D
E->F->D

When referred by multiple routes, the size of object is added to <R_SIZE> reference relation calculated initially. For example, when the reference relation is output in the following A->B, E->B, E->F sequence, the size of object D is added in <R_SIZE> of A->B. In such cases, the output of <R_SIZE> of each reference relation would be as follows:

A->B

Total of size of object B and object D is 4K.
E->B

2k that is the size of object B.
E->F

1K that is the size of object F.

(d) Example of output

Output example.

[EDO][eid=5: Reference to java.lang.HashMap$Entry(0x1234568), total 125K]
[EDO] java.util.HashMap$KeyIterator(0x1134428)(eid=1)
[EDO][eid=5: Reference to ClassA(0x1234580), total 19250K]
[EDO] ClassV(0x1234468)(Tenured)
[EDO][eid=5: Reference to ClassZ(0x1234680), total 12K]
[EDO] ClassU(0x1233468)(DefNew)
[EDO][eid=9: Reference to JP.co.Hitachi.soft.jvm.BBB(0x1034428), total 1250K]
[EDO] JVM(0x23456780)(JVM)

You can check the following contents in this output example:

Object of java.lang.HashMap$Entry that is in the Explicit memory block of eid=5 is referred from object of java.util.HashMap$KeyIterator that is in the Explicit memory block of eid=1 which is not the explicit release target. As a result, object of 125Kbyte is moved to Java heap.
Object of ClassA that is in Explicit memory block of eid=5 is referred from object of ClassV in Tenured area. As a result, an object of 19,250 Kbyte is moved to Java heap.
Object of ClassZ in Explicit memory block of eid=5 is referred from object of ClassU in New area. As a result, object of 12Kbyte is moved to Java heap.
Object of JP.co.Hitachi.soft.jvm.BBB that is in Explicit memory block of eid=9 is referred from stack or internal JavaVM. As a result, an object of 1,250 kilobyte is moved to Java heap.
