5.2.1 Output Format and Output Items of the Hitachi Trace Common Library Format Log

(1) Output format

The output format of Hitachi Trace Common Library format log is as follows:

Number Date Time AP name pid tid message ID Type Message text CRLF

To Page Top

(2) Output items

The output items of the Hitachi Trace Common Library format log are as follows:

Table 5‒13: Output items of the Hitachi Trace Common Library format log

Item name	Description
No.	A 4 digit number showing the trace record serial number is output.
Date	Date of acquiring the trace is output in the yyyy/mm/dd format.
Time	Time of acquiring the trace is output in the hh:mm:ss.sss format.
AP name	String showing the program is output.
Pid	Process ID is output.
Tid	Thread ID is output.
Message ID	Message ID is output in the XXXXnnnnn-Y format.
Type	Event type that triggers the trace output is output.
Message text	Message text is output (up to 4,095 bytes). Any part that exceeds 4,095 bytes will be truncated. Additional information might also be output.
CRLF	Terminal code of the record (0x0D, 0x0A) is output.

Editing and displaying log files

When the sort or filter function is used by displaying the Hitachi Trace Common Library format log in Microsoft Excel, you can effectively investigate the cause of the error that occurred.

The example of displaying the Hitachi Trace Common Library format log by using Microsoft Excel is as follows:

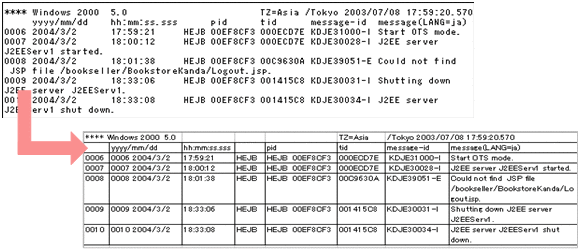

Figure 5‒1: Display example of log of Hitachi Trace Common Library format using Microsoft Excel

Reference note

• As a delimiting data format, select fixed length field data that is right or left justified by using spaces.

• Delete the unnecessary arrows in the Data Preview box.

• Specify Character string in Display format of each column.
