9.4.1 Procedure to Set Automatic Execution of Processes by Management Events

The following figure describes the procedure for setting automatic execution of processes by Management events.

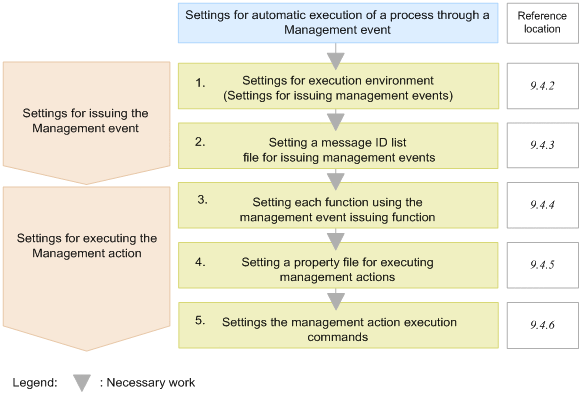

Figure 9‒5: Procedure for setting the automatic execution of processes by management events

Stages 1. to 5. of the figure are explained below:

Make the settings to issue Management events in the execution environment.

Enable issuing of Management events and set the operation to be performed when Management events are issued. For details, see 9.4.2 Settings for execution environment.
Set a message ID list file for issuing Management events.

In the list file, specify a message for which a Management event is to be issued. For details, see 9.4.3 Setting a Message ID List File for Issuing Management Events.
Set each function using the Management event issuing function.

Use the Management event issuing function to set the functions that notify Management events to the Management Server.

Furthermore, make the settings to execute Management actions corresponding to the set Management events. For details, see 9.4.4 Setting Each Function Using the Management Event Issuing Function.
Set a property file for executing Management actions.

Define the Management actions and mapping of message IDs with Management actions in a property file. For details, see 9.4.5 Setting a Property File for Executing Management Actions.
Set the management action execution commands.

Create a command file (batch file or shell script file) to code commands to be executed as Management actions. For details, see 9.4.6 Settings of Management Action Execution Commands.
