3.12.1 Features of the system configuration
Deploy the PRF daemon on a machine with Application Server and the EJB client application running.

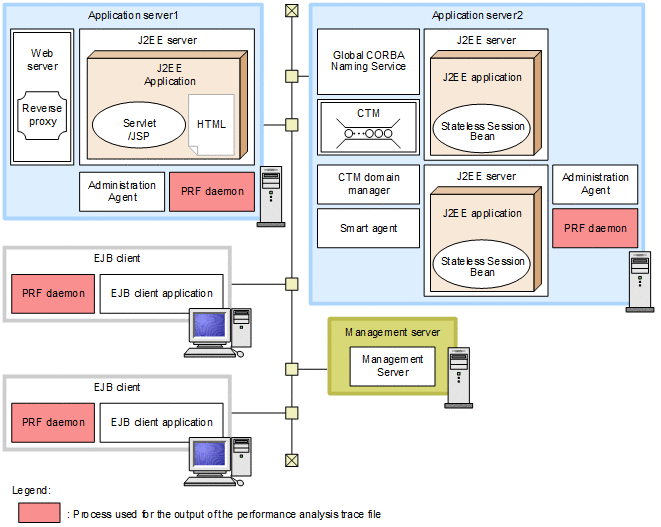

The following figure shows an example of deploying the PRF daemon:
|
|
![[Figure]](GRAPHICS/ZU035800.GIF)
Note: For other legend items, see 3.2 Description of the system configuration.
- Features
-
-
The trace file for analyzing the system performance can be output.
-
The trace file can be used for identifying the points where error has occurred.
-
- Mechanism to output the performance analysis trace
-
When a request is processed between the client and the server, each functionality layer of Application Server or the EJB client application outputs the performance analysis information in a buffer. The PRF daemon outputs this trace information in the files of each machine. You can use Management Server to collect the trace information output in the files.
