3.11.1 Configuration in which executing node and standby node of Application Server are in 1-to-1 ratio (when transaction service is not used)

(1) Features of the system configuration

This is a system configuration that does not use transaction service when using local transaction.

This subsection also describes the configuration in which Application Server performs the node switching. For details about the configuration in which the node switching is performed by Management Server, see 3.11.3 Configuration in which executing node and standby node of Management Server are in 1-to-1 ratio.

The following figure shows an example of configuration where transaction service is not used:

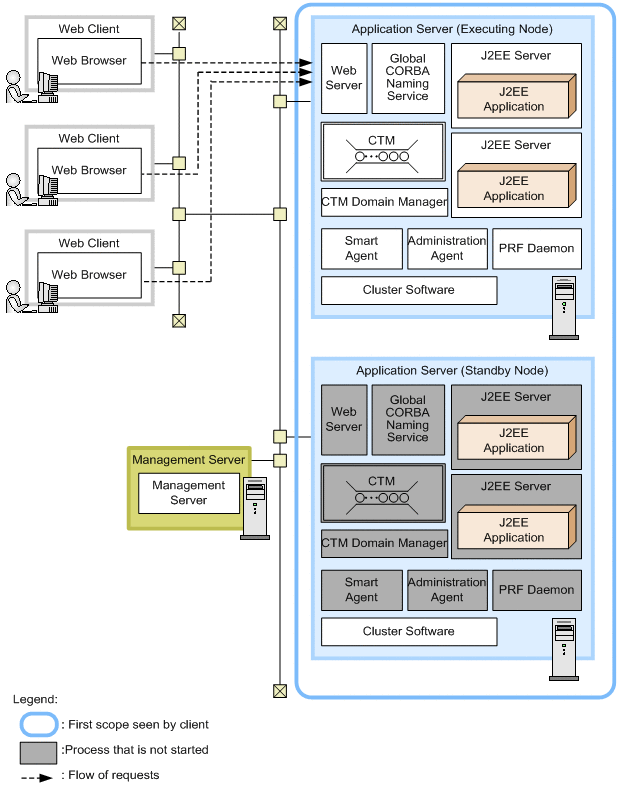

Figure 3‒49: Example of system configuration where executing node and standby node are in 1-to-1 ratio and cluster software is used (when transaction service is not used)

Note: For other legend items, see 3.2 Description of the system configuration.

Features

• The executing node and standby node are configured in a 1-to-1 ratio.

• A shared disk device is not required when you use HA monitor. However, a shared disk device is required when you use Windows Server Failover Cluster. The above figure shows the configuration with HA monitor.

• When the database has a cluster configuration and if Application Server identifies only the virtual address (Logical address), you can still establish the connection.

• For details about allocating Management Server and Application Server on the same machine, see 3.11.6 Configuration in which the executing node and standby node of the host unit management model are in an N-to-1 ratio.

Flow of requests

The client recognizes one machine for both the Application Server instance in the executing node and instance in the standby node. All the requests are sent to the Application Server in the executing node.

Node switching flow

Node switching is executed when there is a failure in the Application Server machine in executing node. Node switching is executed when the OS or Administration Agent is down. Also, node switching is performed when a command is executed explicitly for node switching, or when there is an event where node switching is to be performed for cluster software.

On executing node switching, Administration Agent of Application Server in the standby node and the processes that were stopped until then are started.

To Page Top

(2) Processes to be invoked on the respective machines

The following subsections describe the software and processes required on the respective machines:
