3.5.1 Integration between servers invoking Session Bean and Entity Bean

(1) Features of the system configuration

In this configuration, the Application Server instance on the client side invokes the Application Server instance on the server side. An application consisting of servlets, JSPs, Entity Beans, Session Beans, or Message-driven Beans runs on the client-side application server. The access point component of the server side is either a Session Bean or an Entity Bean. The invocation from the client-side application is executed by RMI-IIOP.

The following figure shows an example configuration of integration between servers that invoke Session Beans and Entity Beans:

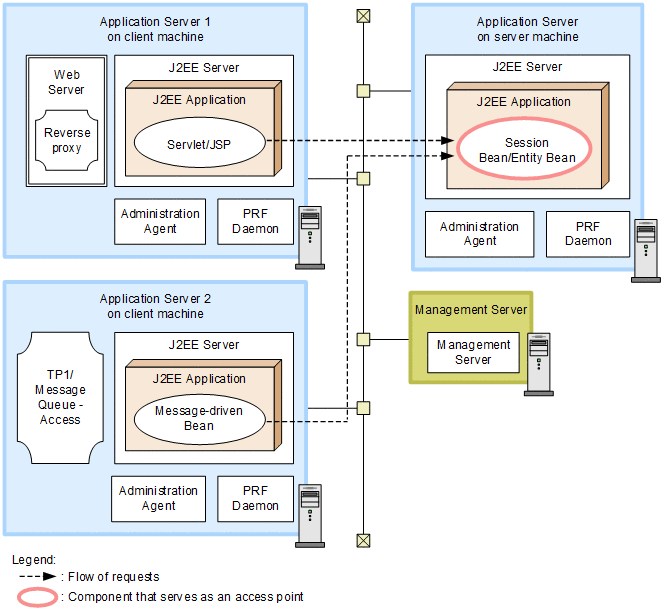

Figure 3‒32: Example of the configuration for integration between servers that invoke Session Bean and Entity Bean

Note: For other legend items, see 3.2 Description of the system configuration.

Features

• You can use this configuration for integrating the applications. Use the configuration for invoking the server application from multiple client applications.

• You can also use this configuration for integrating the systems. If an already built client system and server system are changed as per this configuration, you can invoke the applications between the systems.

Flow of requests

The client side J2EE server sends the requests to the Session Beans or Entity Beans forming the server side access points.

At this point, the Session Beans or Entity Beans are accessed in the client side by looking up the names from the CORBA Naming Service that is invoked as an in-process in the J2EE server on the server-side application server.
