7.2.2 JP1 Events issued by the generator tools

Table 7-8 shows JP1 events issued by the generator tools.

Table 7‒8: JP1 event list (generator tools)
Event ID	Event name	When the event is issued
00010701	Error/installation start event	When an error occurs, installation starts, or a severe error or warning error occurs.
00010702	Function execution event	When any of the following occurs: The generator tools startup. The generator tools stop. Installation stops. A startup UAP starts. A startup UAP stops. Resource deletion starts. Resource deletion stops.

The following explains the contents of each type of JP1 event issued by the generator tools. In addition, Severity is set as both an extended attribute and a main attribute at the JP1 events issued for JP1/Base. The severity of each event is displayed in the viewer of the integrated console.

Organization of this subsection

(1) Installation start event
(2) Function execution event
(3) Examples of messages output to the event log file

(1) Installation start event

Table 7-9 shows attributes of installation start events.

Table 7‒9: Attributes of installation start events
Attribute type		Item	Attribute name	Contents
Main attribute		Event ID	--	00010701
		Message	--	--
		Detailed information	--	None
Extended attribute	Common information	Severity	`SEVERITY`	Error/severe error/warning error: `ERROR` Installation start: `NOTICE`
		Object type	`OBJECT_TYPE`	`COMMAND`
		Object name	`OBJECT_NAME`	JP1/IT Desktop Management 2 - Agent
		Product name	`PRODUCT_NAME`	`/HITACHI/JP1/ITDM2`
		Occurrence type	`OCCURRENCE`	Error/severe error/warning error: `END` Installation start: `START`

Legend:: --: Not applicable.

To Page Top

(2) Function execution event

Table 7-10 shows attributes of function execution events.

Table 7‒10: Attributes of function execution events
Attribute type		Item	Attribute name	Contents
Main attribute		Event ID	--	00010702
		Message	--	--
		Detailed information	--	None
Extended attribute	Common information	Severity	`SEVERITY`	`NOTICE`
		Object type	`OBJECT_TYPE`	`COMMAND`
		Object name	`OBJECT_NAME`	JP1/IT Desktop Management 2 - Agent
		Product name	`PRODUCT_NAME`	`/HITACHI/JP1/ITDM2`
		Occurrence type	`OCCURRENCE`	Generator tools stop/installation stop/startup UAP stop/resource deletion stop: `END` Generator tools start/startup UAP start/resource deletion start: `START`

Legend:: --: Not applicable.

To Page Top

(3) Examples of messages output to the event log file

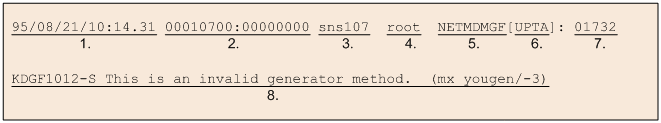

The following shows an example of a generator tool message that is output to the event log file.

[Figure]

Date/time when the message was logged

This item indicates the date/time when the message was logged.
Event ID

This item indicates the event ID of the generator tools.
Host name

This item indicates the host name of the UNIX machine where the generator tools were started.
ID of the user

This item indicates the ID of the user who started the generator tools.
Program name

This item indicates that the message was output from the generator tools.
Program ID

This item indicates the ID code for the command.

YGEN: yougen (the main command of the generator tools)

UPTA: rdsupt (command for installing packages based on the schedule)

UDEL: rdsupdel (command for cooperative command deletion)
ID of the process

This item indicates the ID of the process that invoked the command.
Message

This item is output in Japanese or in English, as specified by the environment variable LANG.
