4.4.13 JP1/NETM/NM - Manager linkage configuration

By linking with JP1/NETM/NM - Manager, JP1/IT Desktop Management 2 can control network connections monitored on network control appliances.

Important

You cannot place a network control appliance in a network segment with the network monitor enabled.

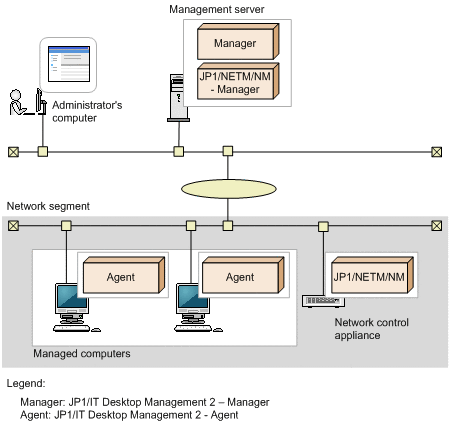

The following figure shows a JP1/NETM/NM - Manager linkage configuration.

[Figure]

In a multi-server configuration, perform either of the following to link with JP1/NETM/NM - Manager:

Note that JP1/NETM/NM - Manager cannot manage JP1/NETM/NM via a NAT device. If you want to use JP1/NETM/NM - Manager to manage network connections in a NAT environment, you must install JP1/NETM/NM - Manager on a management relay server placed in the NAT environment.
