4.4.7 Active Directory linkage configuration
JP1/IT Desktop Management 2 can link with Active Directory so that the information managed by Active Directory can be collected as device information. To link with Active Directory, one of the following OSs is required on the Active Directory server.
-
Windows Server 2019
-
Windows Server 2016
-
Windows Server 2012
-
Windows Server 2008
-
Windows Server 2003

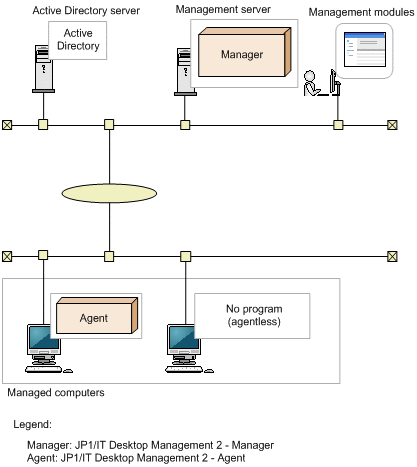

The following figure shows the Active Directory linkage configuration.
![[Figure]](GRAPHICS/Z030033J.GIF)
After you have set up the environment for the Active Directory linkage configuration, use the Active Directory view of the Settings module to set the linkage with Active Directory. If necessary, specify the information that is to be acquired as additional device information.
- Tip
-
Multiple Active Directory domains can also be linked so that JP1/IT Desktop Management 2 can perform integrated management of the information managed by multiple domains. There is no restriction on the number of Active Directory domains that can be linked.
