Hitachi

JP1 Version 12 JP1/IT Desktop Management 2 Overview and System Design Guide


2.18.11 Managing operation logs in a multi-server configuration

In a multi-server configuration, you can send the operation logs collected by a management relay server to the higher management server. If you do this, you can use the operation window of the higher management server to display or export the operation logs sent from a lower management relay server.

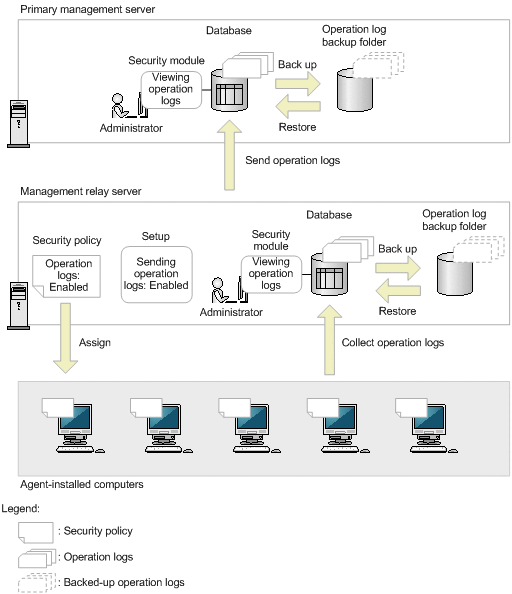

The following figure shows the operation logs flow when the operation logs collected by a management relay server are sent to the primary management server.

[Figure]

If you want to use the higher management server to display the operation logs sent from a lower management relay server, perform the following settings in the lower management relay server.

If you configure the Management Relay Server Settings view in the setup so that the operation logs are sent, all the operation logs including suspicious operations are sent to the higher management relay server.

If you want to display the operation logs also on the lower management relay server, configure the Operation Log Settings view of the setup so that the operation logs are collected.

For details on setting up the management relay server, see the description on setting up the management relay server in the JP1/IT Desktop Management 2 Configuration Guide.
