2.15.4 Checking events on the JP1/IM event console
When JP1/IM is linked, you can monitor error events that occur on managed computers (except Mac OS) and major events that require judgment by the system administrator on the JP1/IM event console.
JP1/IT Desktop Management 2 can use a JP1/Base function to issue JP1 events when errors occur on managed computers (except Mac OS). By linking with JP1/IM, you can use the JP1/IM event console to monitor recent JP1 events or monitor programs of other JP1 products.

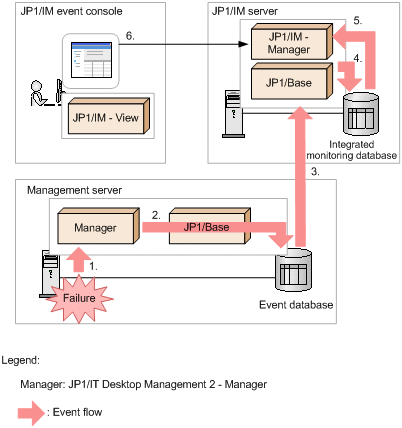

The following figure shows the operation flow when an event is displayed on the JP1/IM event console.
![[Figure]](GRAPHICS/ZU190003.GIF)
-
If an error occurs in JP1/IT Desktop Management 2 - Manager, an event is sent to JP1/IT Desktop Management 2 - Manager.
-
The event received at JP1/IT Desktop Management 2 - Manager is registered as a JP1 event in the JP1/Base event database.
-
The JP1 event registered in the event database is forwarded to the JP1/IM server on which JP1/IM - Manager is running.
-
The JP1 event forwarded to the JP1/IM server is registered in the JP1/IM integrated management database.
-
JP1/IM - Manager acquires the JP1 event from the integrated management database.
-
The acquired JP1 event is displayed on the JP1/IM event console.
For events that can be output to the JP1/IM event console, see the JP1/IT Desktop Management 2 Administration Guide.
