1.3.1 Basic module layout

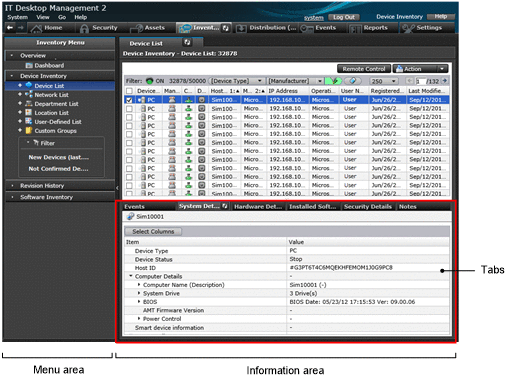

The following describes the basic layout of the JP1/IT Desktop Management 2 modules and the terminology used for the module components.

[Figure]

Menu area: Menus are specific to the selected module. When you select an item here, corresponding information appears in the information area.
Information area: Displays information according to the item selected in the menu area.
Tabs: Tabs appear in the lower pane of the information area in the Security, Assets, Devices, and Distribution (ITDM-compatible) modules. Each tab shows detailed information relating to information selected in the upper pane.

Menu bar

The menus at the top of screen are common to all modules.

[Figure]

System: Logs the user out of JP1/IT Desktop Management 2.
View: Changes the panel layout, shows the display settings for the History back/forward buttons and check boxes, and initializes the display settings.
Go: Starts the Getting Started wizard and edits the user account of the logged-in user.
Help: Shows the operation window site map, license information, and version information for each product.
Log Out button: Logs the user out of JP1/IT Desktop Management 2. To the left of this button, the user ID of the logged-in user account appears. Click the user ID to edit your account information or change your password.
Help button: Describes the items in the open module and the operations you can perform from the module. To the left of this button, the name of the open module appears.

Buttons at the top of the window

These buttons allow you to access functions by switching to another module.

[Figure]
