F.1 Agent types

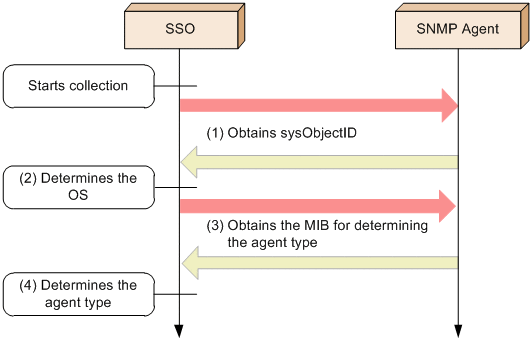

The following figure shows the procedure of how SSO determines the type of the SNMP agent.
|
|
![[Figure]](GRAPHICS/SS0G0010.GIF)
(1) Obtains the sysObjectID#1 from the SNMP agent.
(2) Uses the sysObjectID in (1) to determine the OS of the SNMP agent.
(3) Obtains a MIB object of the SNMP agent to further narrow down the identity of the SNMP agent. #2
(4) Uses the MIB object in (3) to determine the type of the SNMP agent.
- #1
-
The sysObjectID is an MIB object (mib-2.1.2) that contains the identification information for the vendor of the SNMP agent. If the SNMP agent is a JP1 product, SSO can identify the OS and product#3 from the sysObjectID.
- #2
-
Each agent provides a specific MIB object that identifies the agent type. SSO uses this MIB object to determine the agent type. For details about the MIB object to be used to determine the agent type, see the MIB for determining the agent type column in Table F-1.
- #3
-
The products that can be identified are as follows. The type of agents in environments in which these products are not installed is assumed to be TO.
-
JP1/Cm2/Extensible SNMP Agent
-
JP1/Cm2/SubManager
-
The following table describes SNMP agents and agent types.
|
OS |
ID |
Program |
Version |
Type |
MIB for determining the agent type |
|---|---|---|---|---|---|
|
HP-UX |
P-1J42-8ACL |
JP1/Extensible SNMP Agent |
12-00 |
PF |
computerSystem64FreeMemory(hitachi.5.1.2.1.24.7) can be obtained. |
|
P-1J42-8ABL |
JP1/Extensible SNMP Agent |
11-00 |
|||
|
P-1J42-8AAL |
Job Management Partner 1/Consolidated Management 2/Extensible SNMP Agent |
10-50 |
|||
|
P-1J42-8AA1 |
JP1/Cm2/Extensible SNMP Agent |
10-50 |
|||
|
P-1J42-8AAL |
Job Management Partner 1/Consolidated Management 2/Extensible SNMP Agent |
10-10 |
PE |
processor64Num(hitachi.5.1.2.1.17.1), and fileSystem64Mounted(hitachi.5.1.2.1.21.1) can be obtained. |
|
|
10-00 |
|||||
|
P-1J42-8A92 |
09-00 |
||||
|
P-1J42-8AA1 |
JP1/Cm2/Extensible SNMP Agent |
10-10 |
|||
|
10-00 |
|||||
|
P-1J42-8A91 |
09-00 |
||||
|
P-1J42-6A81 |
08-00 |
||||
|
P-1J42-6A71 |
07-50 |
||||
|
P-1B42-8A91 |
JP1/Cm2/Extensible SNMP Agent |
09-00 |
PD |
fileSystem64Mounted(hitachi.5.1.2.1.21.1) can be obtained. |
|
|
P-1B42-6A81 |
08-00 |
||||
|
P-1B42-6A71 |
07-50 |
||||
|
P-1J42-6A72 |
Job Management Partner 1/Consolidated Management 2/Extensible SNMP Agent |
07-00 |
PC |
processor64Num(hitachi.5.1.2.1.17.1) can be obtained. |
|
|
P-1J42-6A71 |
JP1/Cm2/Extensible SNMP Agent |
07-10 |
|||
|
07-00 |
|||||
|
P-1B42-6A72 |
Job Management Partner 1/Consolidated Management 2/Extensible SNMP Agent |
07-10 |
PA |
swapSystemTotalSize(hitachi.5.1.2.1.9.1) can be obtained. |
|
|
07-00 |
|||||
|
P-1B42-6A71 |
JP1/Cm2/Extensible SNMP Agent |
07-10 |
|||
|
07-00 |
|||||
|
P-1B42-6B71 |
JP1/Cm2/SubManager |
07-10 |
|||
|
07-00 |
|||||
|
P-1B42-6D71 |
07-10 |
||||
|
07-00 |
|||||
|
Solaris |
P-9D42-8ACL |
JP1/Extensible SNMP Agent |
12-00 |
SD |
computerSystem64FreeMemory(hitachi.5.1.2.1.24.7) can be obtained. |
|
P-9D42-8ABL |
JP1/Extensible SNMP Agent |
11-00 |
|||
|
P-9D42-8AAL |
Job Management Partner 1/Consolidated Management 2/Extensible SNMP Agent |
10-50 |
|||
|
P-9D42-8AA1 |
JP1/Cm2/Extensible SNMP Agent |
10-50 |
|||
|
P-9D42-8AAL |
Job Management Partner 1/Consolidated Management 2/Extensible SNMP Agent |
10-10 |
SC |
fileSystem64Mounted(hitachi.5.1.2.1.21.1) can be obtained. |
|
|
10-00 |
|||||
|
P-9D42-8A92 |
09-00 |
||||
|
P-9D42-8AA1 |
JP1/Cm2/Extensible SNMP Agent |
10-10 |
|||
|
10-00 |
|||||
|
P-9D42-8A91 |
09-00 |
||||
|
P-9D42-6A81 |
08-00 |
||||
|
P-9D42-6A71 |
07-50 |
||||
|
P-9D42-6A72 |
Job Management Partner 1/Consolidated Management 2/Extensible SNMP Agent |
07-10 |
SB |
cpuUtilNum(hitachi.5.1.2.1.10.1.1.1) can be obtained. |
|
|
07-00 |
|||||
|
P-9D42-6A71 |
JP1/Cm2/Extensible SNMP Agent |
07-10 |
|||
|
07-00 |
|||||
|
P-9D42-6B71 |
JP1/Cm2/SubManager |
07-10 |
|||
|
07-00 |
|||||
|
P-9D42-6D71 |
07-10 |
||||
|
07-00 |
|||||
|
AIX |
P-1M42-8ACL |
JP1/Extensible SNMP Agent |
12-00 |
AC |
computerSystem64FreeMemory(hitachi.5.1.2.1.24.7) can be obtained. |
|
P-1M42-8ABL |
JP1/Extensible SNMP Agent |
11-00 |
|||
|
P-1M42-8AAL |
Job Management Partner 1/Consolidated Management 2/Extensible SNMP Agent |
10-50 |
|||
|
P-1M42-8AA1 |
JP1/Cm2/Extensible SNMP Agent |
10-50 |
|||
|
P-1M42-8AAL |
Job Management Partner 1/Consolidated Management 2/Extensible SNMP Agent |
10-10 |
AB |
fileSystem64Mounted(hitachi.5.1.2.1.21.1) can be obtained. |
|
|
10-00 |
|||||
|
P-1M42-8A92 |
09-00 |
||||
|
P-1M42-8AA1 |
JP1/Cm2/Extensible SNMP Agent |
10-10 |
|||
|
10-00 |
|||||
|
P-1M42-8A91 |
09-00 |
||||
|
P-1M42-6A81 |
08-00 |
||||
|
P-1M42-6A71 |
07-50 |
||||
|
P-1M42-6A72 |
Job Management Partner 1/Consolidated Management 2/Extensible SNMP Agent |
07-10 |
AA |
cpuUtilNum(hitachi.5.1.2.1.10.1.1.1) can be obtained. |
|
|
07-00 |
|||||
|
P-1M42-6A71 |
JP1/Cm2/Extensible SNMP Agent |
07-10 |
|||
|
07-00 |
|||||
|
P-1M42-6B71 |
JP1/Cm2/SubManager |
07-10 |
|||
|
07-00 |
|||||
|
Linux |
P-8142-8ACL |
JP1/Extensible SNMP Agent |
12-00 |
LD |
computerSystem64FreeMemory(hitachi.5.1.2.1.24.7) can be obtained. |
|
P-8142-8ABL |
JP1/Extensible SNMP Agent |
11-00 |
|||
|
P-8142-8AAL |
Job Management Partner 1/Consolidated Management 2/Extensible SNMP Agent |
10-50 |
|||
|
P-8142-8AA1 |
JP1/Cm2/Extensible SNMP Agent |
10-50 |
|||
|
P-8142-8AAL |
Job Management Partner 1/Consolidated Management 2/Extensible SNMP Agent |
10-10 |
LC |
disk64ExNum(hitachi.5.1.2.1.23.1) can be obtained. |
|
|
P-8142-8AA1 |
JP1/Cm2/Extensible SNMP Agent |
10-10 |
|||
|
P-8142-8AAL |
Job Management Partner 1/Consolidated Management 2/Extensible SNMP Agent |
10-00 |
LB |
fileSystem64Mounted(hitachi.5.1.2.1.21.1) can be obtained. |
|
|
P-8142-8AA1 |
JP1/Cm2/Extensible SNMP Agent |
10-00 |
|||
|
P-9S42-8A91 |
09-00 |
||||
|
P-9S42-6A81 |
08-00 |
||||
|
P-9S42-6A71 |
07-50 |
||||
|
P-9V42-8A91 |
09-00 |
||||
|
P-9V42-6A81 |
08-00 |
||||
|
P-9V42-6A71 |
07-50 |
||||
|
P-9S42-6A71 |
JP1/Cm2/Extensible SNMP Agent |
07-10 |
LA |
cpuUtilNum(hitachi.5.1.2.1.10.1.1.1) can be obtained. |
|
|
07-00 |
|||||
|
P-9V42-6A71 |
07-10 |
||||
|
Tru 64 |
P-9U42-6A71 |
JP1/Cm2/Extensible SNMP Agent |
07-50 |
T1 |
-- |
|
07-10 |
|||||
|
07-00 |
|||||
|
Windows |
P-2A42-8BCL |
JP1/Extensible SNMP Agent for Windows |
12-00 |
WB |
computerSystem64FreeMemory(hitachi.5.1.2.1.24.7) can be obtained. |
|
P-2A42-8BBL |
JP1/Extensible SNMP Agent for Windows |
11-00 |
|||
|
P-2W42-8AAL |
Job Management Partner 1/Consolidated Management 2/Extensible SNMP Agent |
10-10 |
|||
|
P-2W42-8AA4 |
JP1/Cm2/Extensible SNMP Agent |
10-10 |
|||
|
P-2W42-8AAL |
Job Management Partner 1/Consolidated Management 2/Extensible SNMP Agent |
10-00 |
WA |
|
|
|
P-2442-8A97 |
09-00 |
||||
|
P-2A42-8A97 |
|||||
|
P-2W42-8AA4 |
JP1/Cm2/Extensible SNMP Agent |
10-00 |
|||
|
P-2442-8A94 |
09-00 |
||||
|
P-2442-6A84 |
08-00# |
||||
|
P-2442-6A74 |
07-50# |
||||
|
P-2842-8A94 |
09-00 |
||||
|
P-2842-6A84 |
08-00# |
||||
|
P-2842-6A74 |
07-50# |
||||
|
P-2A42-8A94 |
09-00 |
||||
|
P-2A42-6A84 |
08-00 |
||||
|
P-2D42-8A94 |
09-00 |
||||
|
P-2D42-6A84 |
08-00 |
||||
|
P-2442-6A77 |
Job Management Partner 1/Consolidated Management 2/Extensible SNMP Agent |
07-00 |
W1 |
swapSpaceConfig(hitachi.5.1.2.1.7.1) can be obtained. |
|
|
P-2442-6A74 |
JP1/Cm2/Extensible SNMP Agent |
07-10 |
|||
|
07-00 |
|||||
|
P-2442-6B74 |
JP1/Cm2/SubManager |
07-10 |
|||
|
07-00 |
|||||
|
Other SNMP agents |
-- |
TO |
-- |
||
|
If an agent of type W1, WA, or WB is running on the SMS server as the server's client node: |
-- |
SM |
-- |
||
#: If the master agent is not SNMP Service, the agent type is assumed to be W1. For details, see Hitachi SNMP Subagents Common definition file in the ESA Help.
