ssosnmpv3setup

Organization of this page

Format
Function
Options
Return values
Note
Output format

Format

To add or change an SNMPv3 definition:

ssosnmpv3setup -add unique-name user-name [authentication-type authentication-password [privacy-type privacy-password]] [-context context-name]

To display a registered SNMPv3 definition:

ssosnmpv3setup -view [unique-name ...]

To delete a registered SNMPv3 definition:

ssosnmpv3setup -del {-all | unique-name ...}

To output the command usage:

ssosnmpv3setup -h

To Page Top

Function

The ssosnmpv3setup command is used to register, display, or delete SNMPv3 definition information.

To Page Top

Options

-add

Specify this option when you register a new SNMPv3 definition or change a registered definition.

-view

Outputs the information about the SNMPv3 definition registered as the specified unique name to the standard output. If you omit the unique name, the information about all registered SNMPv3 definitions is output.

-del

Deletes the SNMPv3 definition registered as the specified unique name. If you also specify -all, all registered SNMPv3 definitions are deleted.

`unique-name`

Specify a unique name of 1 to 80 ASCII characters. Do not include a colon (:) or hyphen (-) in the unique name.

A unique name identifies an SNMPv3 definition. The unique name you specified here is specified as a unique name in the SNMP definition file.

`user-name`

Specify an SNMPv3 user name of 1 to 255 ASCII characters.

`authentication-type`

Specify either of the following as the authentication types:

`authentication-password`

Specify an authentication password of 1 to 255 ASCII characters.

`privacy-type`

Specify one of the following as the privacy type (encryption type):

DES
3DES
AES128
AES192
AES256

`privacy-password`

Specify a privacy password (encryption password) of 1 to 255 ASCII characters.

-context `context-name`

If desired, use this option to specify a context name of 1 to 255 ASCII characters.

To Page Top

Return values

0	Normal termination
-1	Execution error such as incorrect arguments
-2	The specified unique name is not registered (This value is not returned when the `-add` option is specified.)
-3	Error other than the above

To Page Top

Note

After you add, change, or delete SNMPv3 definitions by using the ssosnmpv3setup command, perform either of the following operations:

Execute the ssocollectd command with the -r option specified to re-read the file.
Restart the ssocollectd daemon process.

To Page Top

Output format

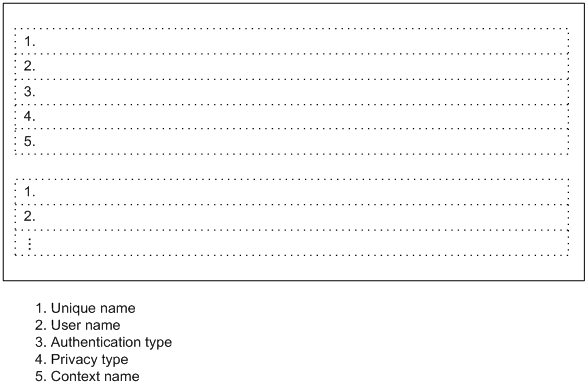

The following is the output format of the -view option:

[Figure]

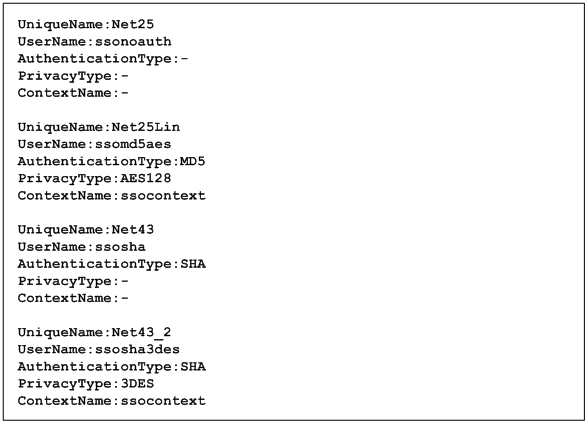

The following is an example of output of registered SNMPv3 definitions by the -view option:

[Figure]
