4.3.12 Set Collection Time Zone window

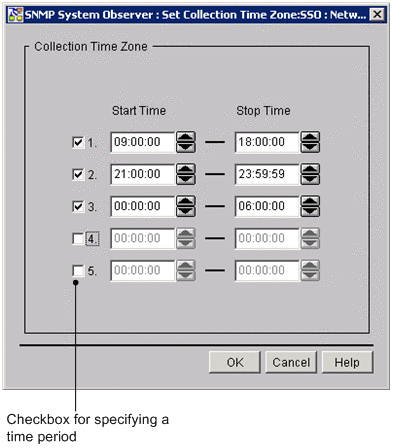

The Set Collection Time Zone window sets the period for collecting data for calculating the initial value of the statistical threshold. The following figure shows the Set Collection Time Zone window.
|
|
![[Figure]](GRAPHICS/SS050227.GIF)
The items to be set are:
- Checkbox for specifying a time period
-
Specify whether to activate the specified collection period. Only the selected periods are activated. By default, no time period is selected.
- Start Time
-
Specify the time to start collection from 00:00:00 to 23:59:59.
- Stop Time
-
Specify the time to stop collection from 00:00:01 to 24:00:00. Specify a time after the start time.
