4.3.10 Regular calculation setting window

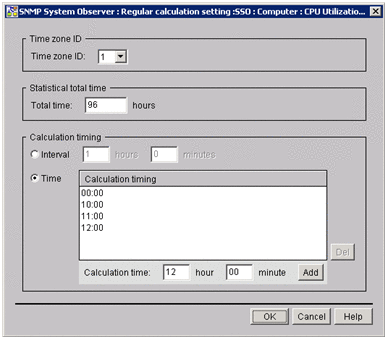

The Regular calculation setting window sets the information necessary to calculate a statistical threshold regularly. The following figure shows the Regular calculation setting window.
|
|
![[Figure]](GRAPHICS/SS050225.GIF)
- Note
-
Some GUI characters might be hidden. If this happens, enlarge the window.
The items to be set are:
- Time zone ID
-
Specify the time zone ID. The specifiable range is 1 to 10. The default is 1.
- Statistical total time
-
Specify 24 to 720 (hours) as the period for extracting data that is needed for calculating a statistical threshold. The default is 96 hours.
- Calculation timing
-
- Interval
-
Select this radio button to specify the interval for calculating a threshold. The specifiable range is 15 minutes to 24 hours. By default, an interval of 1 hour is set.
- Time
-
Select this radio button to specify the time at which a threshold is to be calculated. By default, the time is not set.
- Del
-
Deletes the time selected from the calculation timing list.
- Calculation time
-
You can specify the calculation period between 00:00 and 23:59.
- Add
-
Adds the time you specified to the Calculation timing list.
