4.3.1 Add Collection Condition wizard

The Add Collection Condition wizard adds a collection condition. Figures 4-18 to 4-20 show the Add Collection Condition wizard.

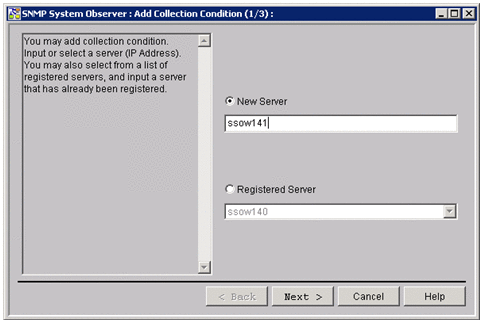

Figure 4‒18: Add Collection Condition (1/3) wizard

The items to be set are:

New server

Specify the host name or IP address of a server containing a resource to be collected. Specify the host name or IP address in 255 bytes or less.

Registered server

When you want to add a collection condition to a registered server, select a server in this box.

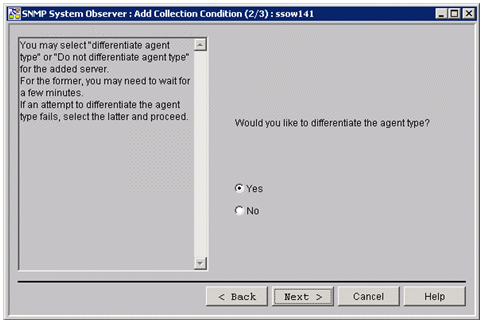

Figure 4‒19: Add Collection Condition (2/3) wizard

The items to be set are:

Yes / No

Select whether to judge the agent type. If you select Yes, the Add Collection Condition (3/3) wizard displays only the resources that can be obtained from the agent.

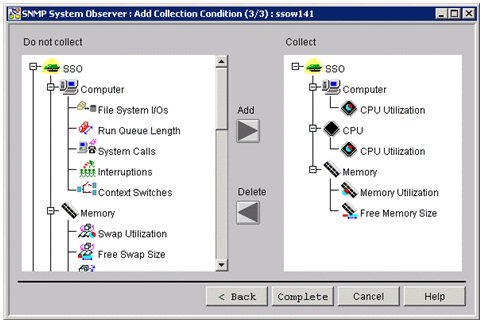

Figure 4‒20: Add Collection Condition (3/3) wizard

The items to be set are:

Do not Collect

This area displays the resources that are not to be collected. Selecting a resource and clicking the Add button adds the resource to the Collect area.

Collect

This area displays the resources that are to be collected. Selecting a resource and clicking the Delete button deletes the resource from the Collect area.

Add

This button adds a resource to the Collect area. You can add resources by category, resource group, or in units of resources.

Delete

This button deletes a resource from the Collect area. You can delete resources by category, resource group, or in units of resources.
