2.4.2 Displaying reports
To display a report, in the report file list displayed by format (CSV or HTML), select the report file to be displayed. The report file list is displayed in the view frame that appears when you log in to the SSO console and select Report Browser in the menu frame of the SSO console.

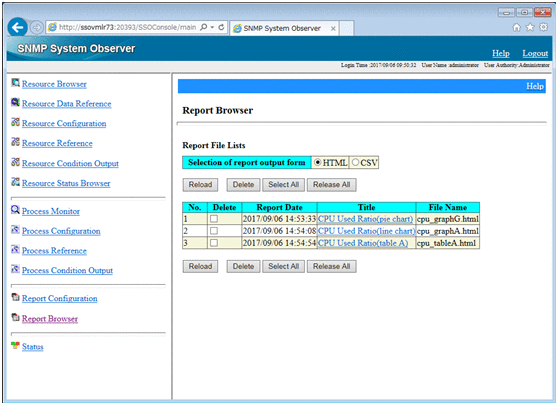

The following figure shows an example of the report file list.
|
|
![[Figure]](GRAPHICS/SS020110.GIF)
- Organization of this subsection
(1) CSV-format report files
CSV-format report files can be displayed with a text editor or spreadsheet software.
(2) HTML-format report files

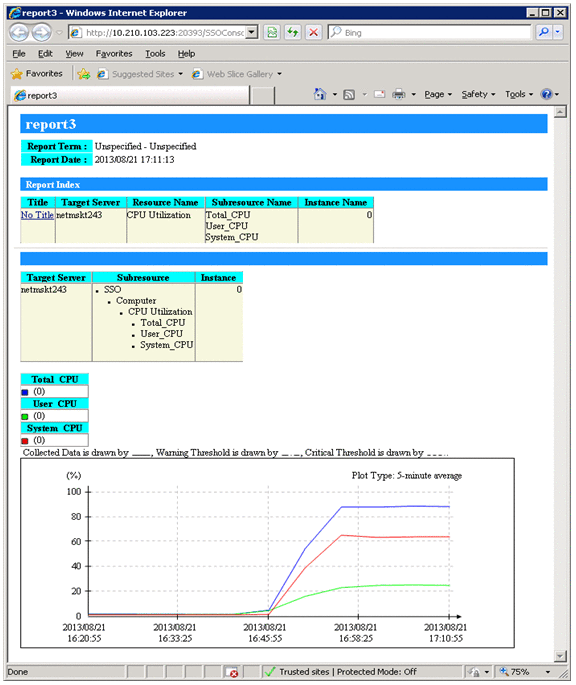

HTML-format report files can be displayed with a web browser. The following figure shows an example of an HTML-format report file displayed with a web browser.
|
|
![[Figure]](GRAPHICS/SS020120.GIF)
- Note
-
The display of text in graphs depends on the font settings of the web browser. Depending on the font settings, text might extend beyond the graph, overlap, or be partly missing. In such a case, change the font settings of the web browser.
