1.5.1 System configuration in an NNMi global network management environment

The system configuration of the SSO series in an NNMi global network management environment and the components that make up the system are described below.

In an NNMi global network management environment, SSO is placed in a Regional Manager environment. The system is configured so that events that occur during the collection of resources and the monitoring of processes and services are also transmitted to the global manager, so as to enable centralized monitoring from the global manager. Event transmission to the global manager can be enabled by using the event destination definition file (ssodest.conf). For details on this file, see 6.3.13 Event destination definition file (ssodest.conf).

If needed, SSO can also be placed in the global manager environment.

The following figure shows an example of the system configuration.

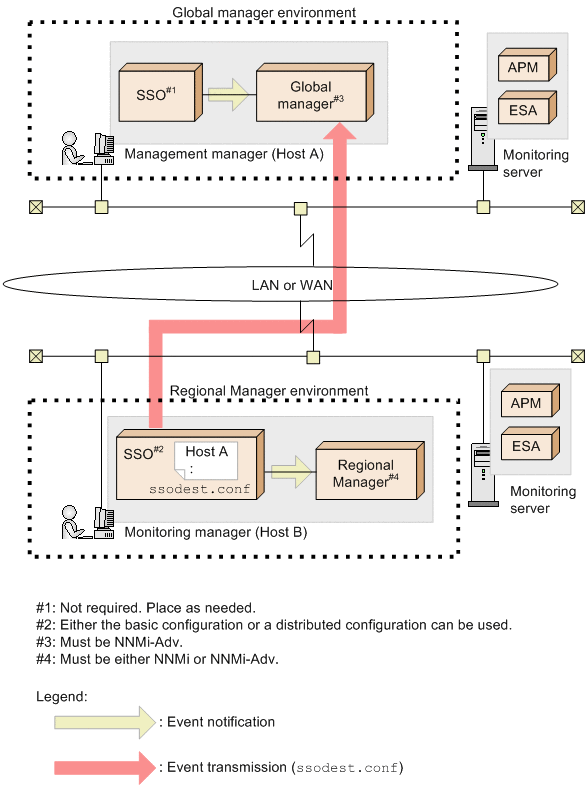

Figure 1‒6: Example of the system configuration in an NNMi global network management environment

[Figure]
