1.2.1 Basic configuration

In the basic configuration, NNMi and SSO run on the same server. The following figure shows an example of the basic configuration.

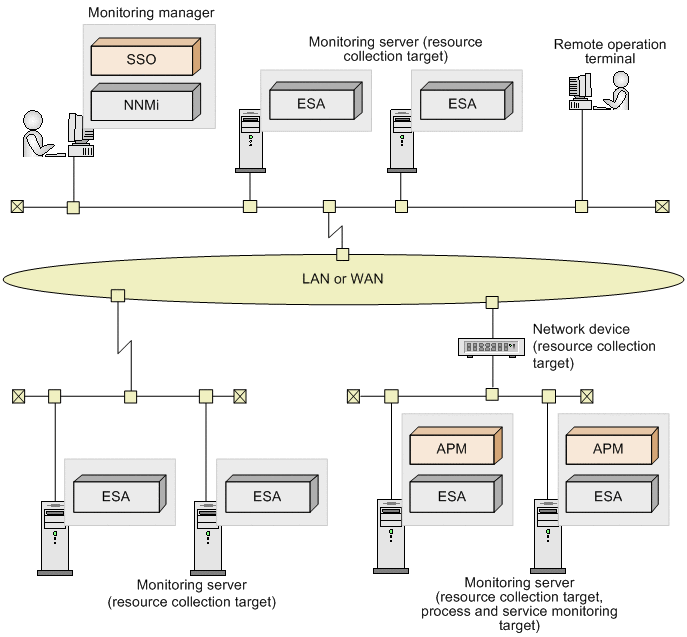

Figure 1‒1: System configuration (basic configuration)

[Figure]

In the basic configuration, the system is configured with the following components:

Monitoring manager

The server on which SSO and NNMi run.

This server collects and monitors the system resource information of monitoring servers, and monitors processes and services on the monitoring servers.

Monitoring server

A server or network device on which ESA and APM run.

ESA is an SNMP agent that is required for the collection of system resource information. APM is required for monitoring of the operating status of processes and services.

Remote operation terminal

A Windows or Linux machine that is required as a web browser execution environment for using the SSO console.
