Hitachi

JP1 Version 12 JP1/SNMP System Observer Description, Operator's Guide and Reference


1.1.1 Overview of the SSO

SSO collects and manages the system resources of network servers, and monitors the operating status of processes and services on network servers.

For the collection and management of system resources, the information managed by the SNMP agent on each server is acquired and stored in a database. The stored database information can be displayed graphically or as report files in a web browser. Incidents can also be issued to NNMi, and SNMP traps can be issued to system monitoring tools located on other hosts.

For monitoring the operating status of processes and services on network servers, monitoring conditions are set for the servers.

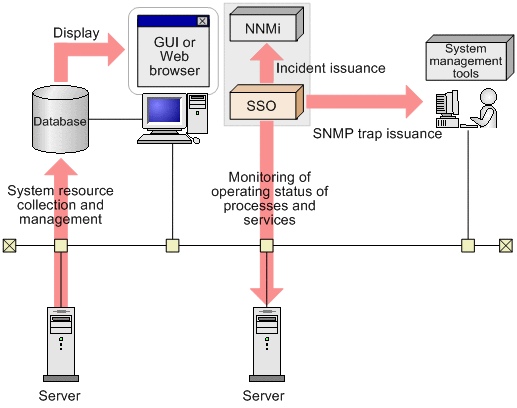

[Figure]
