7.2.5 Extending Monitoring
You can extend the monitoring to include the following:
-
Unconnected interfaces.
By default, the only unconnected interfaces that NNMi monitors are those that have IP addresses and are included in the Routers node group.
- Note
-

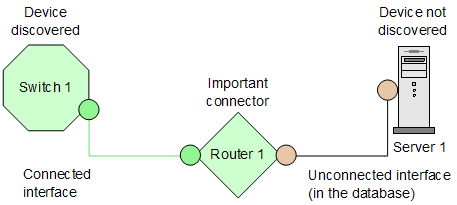

NNMi defines an unconnected interface as an interface that is not connected to another device discovered by NNMi, as shown below.
-
Interfaces, such as router interfaces, that have an IP address
-
ICMP polling for devices that do not support SNMP
By default, ICMP polling is enabled for the Non-SNMP Devices node group.
