Hitachi

JP1 Version 12 JP1/Network Node Manager i Setup Guide


26.5.6 Event correlation: Event repetition

When duplicating events, NNM uses either the first or the last event as the parent.

In NNMi, a new parent is created, which is displayed when you choose All Incidents from the Incident Browsing workspace. The original event is also displayed in the view that has been set up.

[Figure]

  1. Check whether RepeatedEvents correlation is used in NNM.

  2. Check whether Repeated correlation is used in NNM.

  3. Check whether duplication is used (dedup.conf file).

    [Figure]

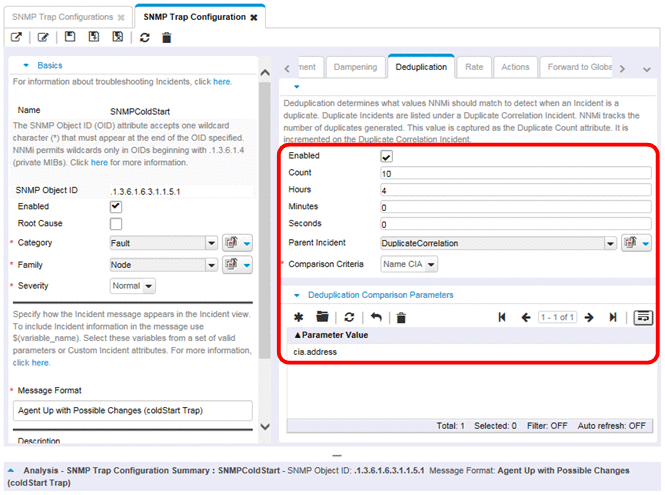

  4. In the NNMi console, from the Configuration workspace, choose Incident Configuration.

  5. Open the event that is to be duplicated.

  6. Click the Deduplication tab, enable deduplication, select a new parent event, and then define criteria for matching.

    Note

    Duplication in NNMi has no time limit.

    [Figure]
