26.4.3 Setting up important nodes

NNMi provides default node groups for important nodes.

If these important nodes have failed or cannot be reached, NNMi displays SEVERE for the node status and generates a NodeDown incident.

NNM netmon polling process

NNM offers no settings for important nodes. You can create new settings for important nodes in NNMi.

NNMi polling process

1. In the NNMi console, from the Configuration workspace, choose Object Groups > Node Groups.

2. Open the Important Nodes node group.

3. Add important nodes to the group separately for the host name wildcard, device filter, or certain node as shown below.

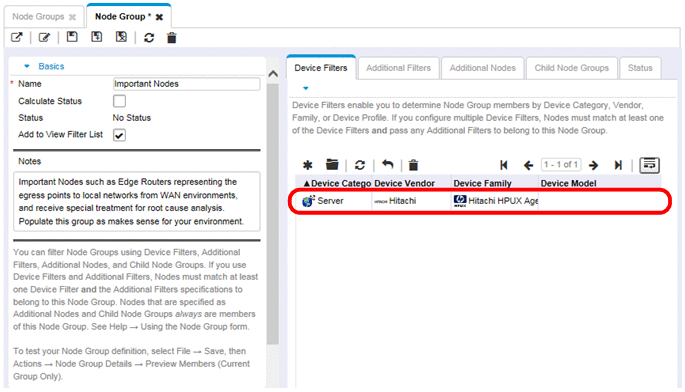

   a. Add a device filter.

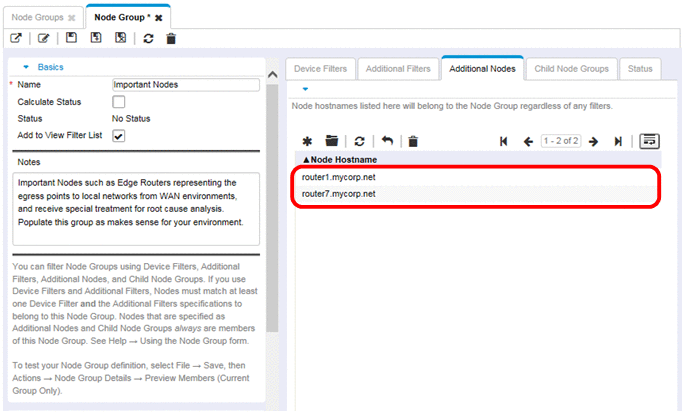

   b. Add certain nodes. Save the form and close the window.
