7.2.5 Extending Monitoring

You can extend the monitoring to include the following:

• Unconnected interfaces.

  By default, the only unconnected interfaces that NNMi monitors are those that have IP addresses and are included in the Routers node group.

  Note

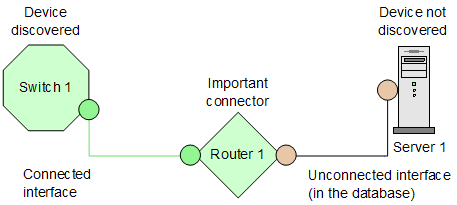

  NNMi defines an unconnected interface as an interface that is not connected to another device discovered by NNMi, as shown below.



• Interfaces, such as router interfaces, that have an IP address

• ICMP polling for devices that do not support SNMP

  By default, ICMP polling is enabled for the Non-SNMP Devices node group.
