3.3.1 Configuring community strings

To configure NNMi with community strings, follow these steps:

1. From the workspace navigation panel, select the Configuration workspace.

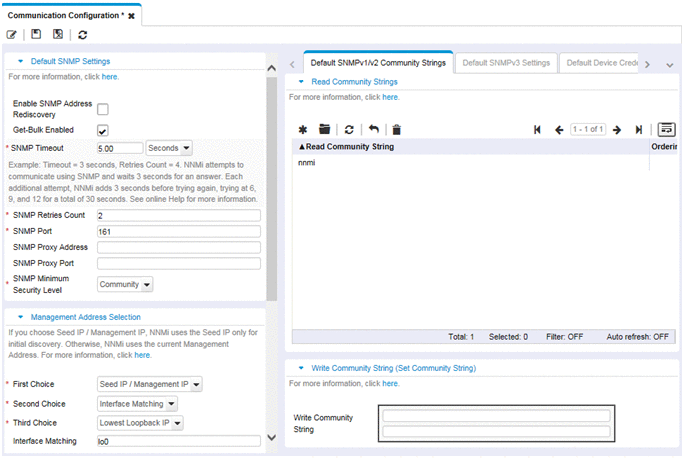

2. Open the Communication Configuration form, as shown here:



3. On the Default SNMPv1/v2 Community Strings tab, click the New icon.

4. On the Default Read Community String form, in the Read Community String box, enter a community string for one of the nodes in the discovery range, and then click the Save and New icon.

5. Repeat step 4 to enter all community strings for the nodes in the discovery range, and then click the Save and Close icon.

6. On the Communication Configuration form, click the Save and Close icon.

For details about setting up device community strings and loading community strings from a file, see Configuring Communication Protocol in NNMi Help.
