3.1.4 Monitoring resources

View the resources to be monitored. SSO performs resource monitoring.

Before you begin

Set the conditions for collecting resources.

Procedure

Access the NNMi console.
In the Topology Maps workspace, click Network Overview.
Select the server whose resources you want to view, and from the Actions menu, click SNMP System Observer and Resource Data Reference.

Tip

If you click (Search), you can search for the server name you want to view.

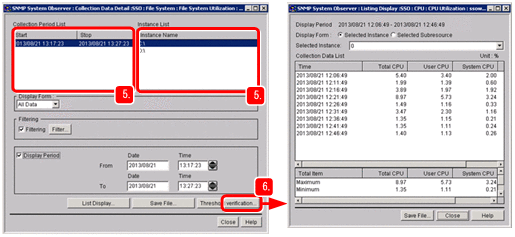

Select the resource that you want to view, and select View and Collection Data Details.
From Collection Period List and Instance List, select the period and instance that you want to view, respectively.
Click List Display.
You can view a list of collected data.

Tip

In the Resource Data Reference window, you can copy or delete the data of the collected resources.

For example, you can secure free space in the database by copying and retaining the resources only for the period during which a problem occurred, and then deleting other unnecessary resources.

Next steps

You have now successfully viewed information about the collected resources. If necessary, you can output information about the collected resources to a report to understand the operational trends of the server and to make system operation plans.

Note: You can output information about the collected resources to a report by using Report Browser of the SSO console. To output a report, you need to configure the report settings in advance. For details about outputting reports, see the topic Report Configuration window in the manual JP1/SNMP System Observer.
