1.2.1 Checking the server environment

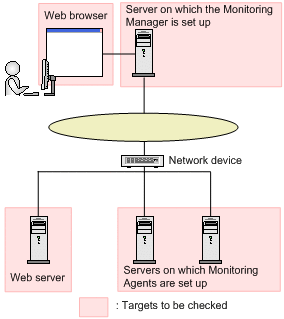

Before installing JP1 network management products, check whether the server environment to be used for operation is appropriate.

Procedure

1. Make sure that the specifications of the server on which the Monitoring Manager is to be set up satisfy the following conditions:

   • OS

     For Windows: Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, or Windows Server 2019

     For Linux: CentOS 6.1 (x64), CentOS 7.1, CentOS 8.1, Linux 6.1 (x64), Linux 7.1, Linux 8.1, Oracle Linux 6.1 (x64), Oracle Linux 7.1, Oracle Linux 8.1, or SUSE Linux 12

     Note that this manual describes the setup procedure for Windows Server 2012 and Linux 6.1 (x64).

   • Disk capacity:

     For Windows: 14.5 GB or more

     For Linux: 14.0 GB or more

   • Memory:

     For Windows: 4.5 GB or more

     For Linux: 6.0 GB or more

2. Make sure that the specifications of the server on which the Monitoring Agent is to be set up satisfy the following conditions:

   • OS

     For Windows: Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, or Windows Server 2019

     For Linux: CentOS 6.1 (x64), CentOS 7.1, CentOS 8.1, Linux 6.1 (x64), Linux 7.1, Linux 8.1, Oracle Linux 6.1 (x64), Oracle Linux 7.1, Oracle Linux 8.1, SUSE Linux 12, or SUSE Linux 15

     For UNIX: HP-UX (IPF), AIX V7.1, AIX V7.2, or Solaris 11

     Note that this manual describes the setup procedure for Windows Server 2012 and Linux 6.1 (x64).

   • Disk capacity:

     For Windows: 65.0 MB or more

     For Linux: 150.0 MB or more

   • Memory:

     For Windows: 15.0 MB or more

     For Linux: 70.0 MB or more

3. Check the language settings of the server on which the Monitoring Manager is to be set up.

   For Windows, set the locale as follows:

   • For a Japanese environment: Japanese

   • For an English environment: English

   • For a Chinese environment: Chinese

   For Linux, set the locale as follows:

   • For a Japanese environment: ja_JP.UTF-8

   • For an English environment: C

   • For a Chinese environment: zh_CN.utf8

4. Check the port number of the Web server.

   The port number of the Web server is used during the installation of NNMi. The default HTTP port is 80, and the default HTTPS port is 443.

5. Make sure that the Web browser to be used satisfies the following conditions:

   If the OS is Windows: Internet Explorer 11, Firefox ESR 78, Google Chrome or Microsoft Edge (Chromium version)
