E.2 Firewall passage directions

If there is a firewall between PFM - Manager and PFM - Agent for Enterprise Applications, you must set fixed port numbers for all services of PFM - Manager and the PFM - Agent. Set the port numbers so that communications can pass through the firewall for all services.

For details, see the description about the directions in which data passes through a firewall in the manual JP1/Performance Management Reference.

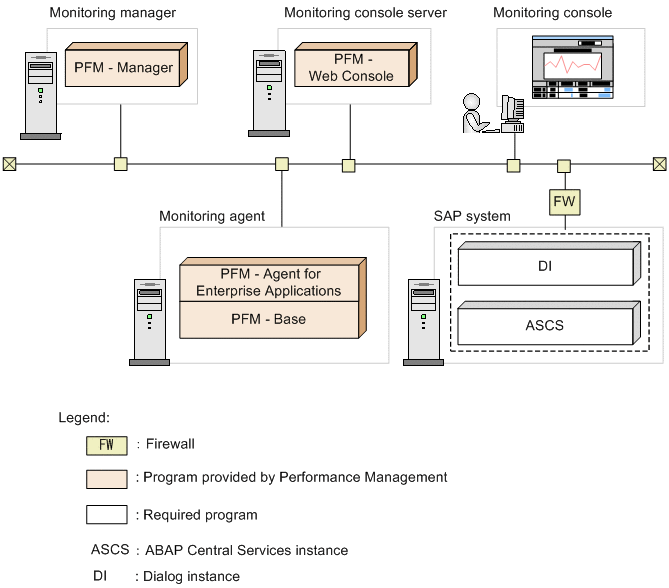

To use the remote monitoring function, you have to set up the port number of the SAP system to be monitored in a way that allows it to pass through the firewall.

Table E‒2: Firewall passage direction and supported firewalls

Service name	Port number	Direction of communication#1#2	Supported firewalls
sapgwnn #3	33nn #3/tcp	PFM - Agent for Enterprise ApplicationsSAP system	Packet filtering type, and NAT (static mode) type address conversion
Any (Default: sapdp99)#4	Any/tcp (Default: 3299/tcp)	PFM - Agent for Enterprise Applications SAP system	Packet filtering type, and NAT (static mode) type address conversion

Legend:

: The direction in which communication (connection) begins

#1

After communication (connection) begins, sending and receiving are performed on the established session. Specify the settings so that a reception to the established session can also penetrate a firewall.

#2

When communication (connection) begins, the connection-source host uses a free port number assigned by the OS as the receiving port. Therefore, specify the settings so that any port number can penetrate a firewall as the receiving port.

#3

nn denotes the system number representing the SAP system at the connection destination.

#4

If you are using the SAProuter to connect to the SAP system at the connection destination, specify the port number to be used by the SAProuter.
