6.4.3 Environment parameters file for extracting CCMS alert information by command execution

If you specify an environment parameters file as an argument in the jr3alget command, the command extracts the CCMS alert information of the SAP system based on the settings in the file.

You create this environment parameter file as a text file.

Organization of this subsection

(1) Setup procedure

To set up the environment parameters file:

  1. Before you edit the environment parameters file, check that the jr3alget command is not running.

  2. To create a new environment parameters file, copy the sample environment parameters file under the name jr3alget.ini.

  3. Copy the sample environment parameters file under the name jr3alget.ini.

    This jr3alget.ini becomes the default environment parameters file. The sample environment parameters file is as follows:

    In Windows:

    installation-folder\agtm\evtrap\jr3alget.ini.sample

    In Linux:

    /opt/jp1pc/agtm/evtrap/jr3alget.ini.sample

  4. Open the jr3alget.ini file.

  5. Edit the settings.

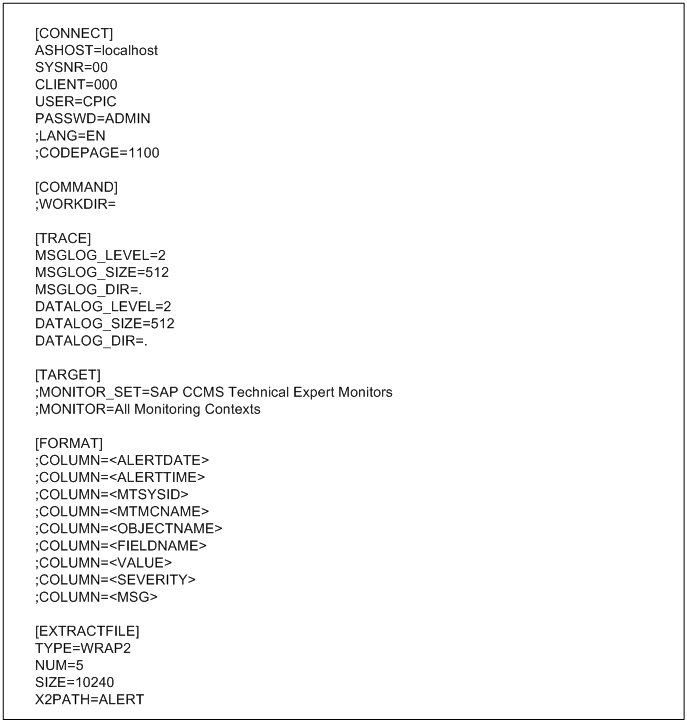

    The settings in the default environment parameters file are as follows; for details about the settings, see (2) below.

    [Figure]

    In the case of an item that begins with a semicolon (;), the setting is disabled by default, because the semicolon indicates that it is a comment line. To enable the setting, remove the semicolon.

  6. Save the environment parameters file.

    By specifying the -cnf option in the jr3alget command, you can extract the CCMS alert information of the SAP system based on the settings in the environment parameters file.

(2) Settings

Specify the settings in the environment parameters file in the following format:

[section]
label=value
label=value
...
...
[section]
label=value
label=value
Notes
  • Do not specify any unneeded characters, such as spaces at the beginning of a line or before and after an equals sign (=).

  • The values specified in section and label are not case-sensitive.

  • A line beginning with a semicolon (;) is treated as a comment.

The following tables describe the contents of each section in the environment parameters file. In a table, the Argument column indicates the argument that is specified in the jr3alget command, if applicable. N/A means that the item cannot be specified with the command.

(a) CONNECT section

The CONNECT section specifies information needed to establish RFC connection with the SAP system at the time of command execution.

Table 6‒8: Values permitted in the CONNECT section

Label

Description

Permitted values

Default value

Argument

ASHOST

Host name of the connection-target application server (which can be verified by transaction code SM51)

1 to 100 single-byte alphanumeric characters in one of the following formats:

  • Host name specified in the hosts file

  • IP address

  • SAP router address

localhost

-h

SYSNR

System number that can be identified by the connection-target application server host

0-99

00

-s

CLIENT

User's client name used for establishing connection

0-999

000

-c

USER

User name used for establishing connection#1

1 to 12 single-byte alphanumeric characters

CPIC

-u

PASSWD

User's password used for establishing connection#2

1 to 8 single-byte characters#3

ADMIN

-p

PASSWD2

User's extended password used for establishing connection#2

1 to 40 single-byte characters#3

ADMIN

-p2

LANG

User language used for connection

Japanese and English are supported. 2-byte ISO ID or 1-byte language key that is used in the SAP system:

  • Japanese: JA or J

  • English: EN or E

None

-l

CODEPAGE

Code page used to convert character codes in the Unicode version of the SAP system at the destination

Value combined with the language in the LANG label#4

None

-codepage

#1

The user specified in this label must have already been granted the following authorizations:

Table 6‒9: Authorizations required by the user to establish RFC connection with function modules (S_RFC)

Authorization

Description

Value

RFC_TYPE

Type of RFC object to be protected

FUGR (function group)

RFC_NAME

RFC name to be protected

*

ACTVT

Activity

16 (execution)

Table 6‒10: Authorizations required for use of external management interfaces (S_XMI_PROD)

Authorization

Description

Value

EXTCOMPANY

Company name of the external management tool

HITACHI

EXTPRODUCT

Program name of the external management tool

JP1

INTERFACE

Interface ID

XAL

You can use the following user types for the user specified in this label:

  • Dialog

  • System

  • Communication

  • Service

#2

Specify the PASSWD label if the SAP system is applying conventional password rules. Specify the PASSWD2 label if the SAP system is applying extended password rules. The PASSWD and PASSWD2 labels are mutually exclusive.

#3

A user's password or extended password that is used for establishing connection must consist of single-byte numeric characters (from 0 to 9), single-byte alphabetic characters (from a to z, A to Z), and the following single-byte symbols:

!, @, $, %, &, /, (, ), =, ?, ', `, *, +, ~, #, -, _, ., :, {, [, ], }, <, >, |

#4

Set the LANG and CODEPAGE labels in the applicable combination shown below. If any other combination of language and code page is specified, an encoding error might occur in the information acquired from the SAP system.

Table 6‒11: Combination of language and code page specifications

Connection-target SAP system

Connection language

Language (LANG)

Code page (CODEPAGE)

Unicode version

Japanese

JA

8000

English

EN

No need to specify. If you specify a code page, specify 1100.

Non-Unicode version

Japanese

JA

No need to specify. If you specify a code page, specify 8000.

English

EN

No need to specify. If you specify a code page, specify 1100.

If you omit specification of the LANG label, the user language defined in the connection-target system is assumed.

If you omit specification of the CODEPAGE label, the default code page in the connection-target system is assumed.

(b) COMMAND section

The COMMAND section specifies information about the work directory for the jr3alget command.

Table 6‒12: Values permitted in the COMMAND section

Label

Description

Permitted values

Default value

Argument

WORKDIR

Work directory for the command

1 to 255 single-byte alphanumeric characters. If a relative path is specified, it is treated as the path relative to the current directory.

Current directory

N/A

(c) TRACE section

The TRACE section specifies information about the message log and data log that store the history of CCMS alert information extraction.

Table 6‒13: Values permitted in the TRACE section

Label

Description

Permitted values

Default value

Argument

MSGLOG_LEVEL

Message log collection level for saving application trace information:

  • 0: Do not collect

  • 1: Collect only errors

  • 2: Standard

  • 3: Details

  • 4: Debug

0-4

2

N/A

MSGLOG_SIZE

File size for collecting the message log:

  • 0: 2 GB (the maximum value that can be expressed by a 32-bit signed integer (0x7FFFFFFF))

  • 1-65535: Wraparound within the specified size (in kilobytes)

0-65535

512

N/A

MSGLOG_DIR

Message log file (jr3alget.log) collection-target directory

1 to 255 single-byte alphanumeric characters. The total length, including file name jr3alget.log, must not exceed 255 bytes. If a relative path is specified, it is treated as the path relative to the work directory for the command.

Work directory for the command (or the current directory if it has not been changed by the WORKDIR label in the COMMAND section)

N/A

DATALOG_LEVEL

Data log collection level for saving various types of data information for applications:

  • 0: Do not collect

  • 1: Collect only errors

  • 2: Standard

  • 3: Details

  • 4: Debug

0-4

2

N/A

DATALOG_SIZE

File size for collecting data log:

  • 0: 2 GB (the maximum value that can be expressed by a 32-bit signed integer (0x7FFFFFFF))

  • 1-65535: Wraparound within the specified size (in kilobytes)

0-65535

512

N/A

DATALOG_DIR

Data log file (jr3alget.dat) collection-target directory

1 to 255 single-byte alphanumeric characters. The total length, including file name jr3alget.log, must not exceed 255 bytes. If a relative path is specified, it is treated as the path relative to the work directory for the command.

Work directory for the command (or the current directory if it has not been changed by the WORKDIR label in the COMMAND section)

N/A

(d) TARGET section

The TARGET section specifies information that identifies the CCMS alert information to be extracted.

Table 6‒14: Values permitted in the TARGET section

Label

Description

Permitted values

Default values

Argument

MONITOR_SET

Monitor set name (for details, see the -ms option)

1 to 60 single-byte alphanumeric characters

SAP CCMS Technical Expert Monitors

-ms

MONITOR

Monitor name (for details, see the -mn option)

1 to 60 single-byte alphanumeric characters

All Monitoring Contexts

-mn

(e) FORMAT section

The FORMAT section specifies the output format of the CCMS alert information.

Table 6‒15: Values permitted in the FORMAT section

Label

Description

Permitted values

Default values

Argument

COLUMN

Output format of CCMS alert information

Field ID. For details about the field ID, see Output format and contents in the jr3alget command in Chapter 11. Commands.

Column 1: <ALERTDATE>

Column 2: <ALERTTIME>

Column 3: <MTSYSID>

Column 4: <MTMCNAME>

Column 5: <OBJECTNAME>

Column 6: <FIELDNAME>

Column 7: <VALUE>

Column 8: <SEVERITY>

Column 9: <MSG>

N/A

TIMEZONE

Time zone for time information specified in field IDs <ALERTDATE>, <ALERTTIME>, <STATCHGDAT>, and <STATCHGTIM>

  • UTC

    Output in UTC (international time standard).

  • LOCAL

    Output in the local time at the location of the user who executed the command.

UTC

TIMEZONE

(f) EXTRACTFILE section

The EXTRACTFILE section specifies information about the output file for the CCMS alert information.

Table 6‒16: Values permitted in the EXTRACTFILE section

Label

Description

Permitted values

Default value

TYPE

Format of file for storing CCMS Alert Information:

  • WRAP1

    This file is in wraparound format, which means that data is overwritten when the amount of CCMS Alert Information reaches a specified value.

  • WRAP2

    This format consists of the number of files specified in the NUM label. When the amount of data in the first file reaches a specified value, new data is written in the second file, starting at the top, after all existing data is deleted from the second file.

    When all of the files are full, new data is again written in the first file, starting at the top, after all existing data is deleted from the first file.

If you configure a new environment for PFM - Agent for Enterprise Applications, we recommend that you specify WRAP2.

If you want to change the format of storage files after you have started system operations, first stop any products monitoring the storage files, and then delete the storage files and their management files#1.

WRAP1 or WRAP2

WRAP1

SIZE

Size of one storage file:

  • 0:

    2 GB (the maximum value that can be expressed by a 32-bit signed integer (0x7FFFFFFF))

  • 1 to 65535:

    Wraparound within the specified size (kilobytes)

0 to 65535

10240#3

X2PATH

  • WRAP1 specified in the TYPE label

    Specify the path of storage file that is to be used when storage file output is specified in the -x2 option.#1, #3

  • WRAP2 specified in the TYPE label

    Specify the storage file that is to be used when storage file output is specified in the -x2 option.#3, #4

  • WRAP1 specified in the TYPE label

    1 through 251 bytes of single-byte alphanumeric characters#5

  • WRAP2 specified in the TYPE label

    1 through 254 bytes of single-byte alphanumeric characters#5

--

NUM

Number of files to be stored in the WRAP2 format.

This is applicable only when WRAP2 is specified in the TYPE label.

2 to 9

5

Legend:

--: Not applicable

#1

If the WRAP1 format is used, a management file having the name storage-file-name.ofs is created in the same directory as for the storage file.

Example:

If ALERT is specified as the storage file name, a management file named ALERT.ofs is created in addition to the ALERT file.

If you delete the storage file, you must also delete the management file.

#2

For details about the default value that is used when the product is upgraded from version 09-00 or earlier, see Appendix H. Migration Steps and Notes on Migration.

#3

If you do not use the default storage location, the storage and management files will not be collected when using the jpcras command. Therefore, in the event of a problem, you need to manually collect the storage and management files.

#4

A value in the range specified in the NUM label (default: 1 through 5) is assigned to this value to obtain the file name.

#5

If a relative path is specified, the command's working directory (directory specified in the WORKDIR label in the COMMAND section) is assumed as the current directory. If no working directory is specified, the directory listed below is assumed as the current directory. The environment directory means a directory on the shared disk that was specified when the logical host was created.

In Windows:

Physical host environment: installation-folder\agtm\agent\instance-name

Logical host environment: environment-directory\jp1pc\agtm\agent\instance-name

In Linux:

Physical host environment: /opt/jp1pc/agtm/agent/instance-name

Logical host environment: environment-directory/jp1pc/agtm/agent/instance-name

(g) Option section

The Option section specifies information that determines the base point for extracting CCMS alert information.
