6.2 Extracting CCMS alert information

This section describes the procedure for extracting the CCMS alert information of an SAP system and provides an example of the output.

To extract CCMS alert information, you must set up your PFM - Agent for Enterprise Applications to store performance data in the Store database in CCMS Alert Monitor Command (PD_ALMX) records. Each time performance data is collected in CCMS Alert Monitor Command (PD_ALMX) record, the CCMS alert information is then extracted automatically. The previous record collection time is recorded in the timestamp file and only the CCMS alert information that occurs after that time is extracted. The default is for the CCMS alert information of the SAP system to be output to the following text file:

OS environment	Host environment	CCMS alert information storage file
Windows	Physical host	`WRAP1` `installation-folder\agtm\agent\instance-name\log\ALERT` `WRAP2` `installation-folder\agtm\agent\instance-name\log\ALERTn`^#1
Windows	Logical host	`WRAP1` `environment-directory`^#2`\jp1pc\agtm\agent\instance-name\log\ALERT` `WRAP2` `environment-directory`^#2`\jp1pc\agtm\agent\instance-name\log\ALERTn`^#1
Linux	Physical host	`WRAP1` `/opt/jp1pc/agtm/agent/instance-name/log/ALERT` `WRAP2` `/opt/jp1pc/agtm/agent/instance-name/log/ALERTn`^#1
Linux	Logical host	`WRAP1` `environment-directory`^#2`/jp1pc/agtm/agent/instance-name/log/ALERT` `WRAP2` `environment-directory`^#2`/jp1pc/agtm/agent/instance-name/log/ALERTn`^#1

#1: n indicates a value in the range from 1 through value specified in the NUM label in the EXTRACTFILE section in the environment parameter file.
#2: The environment directory is on the shared disk that was specified when the logical host was created.

The processing result is stored in a CCMS Alert Monitor Command (PD_ALMX) record.

For details about the CCMS Alert Monitor Command (PD_ALMX) record, see Chapter 10. Records.

The following figure shows the procedure for extracting the CCMS alert information of an SAP system:

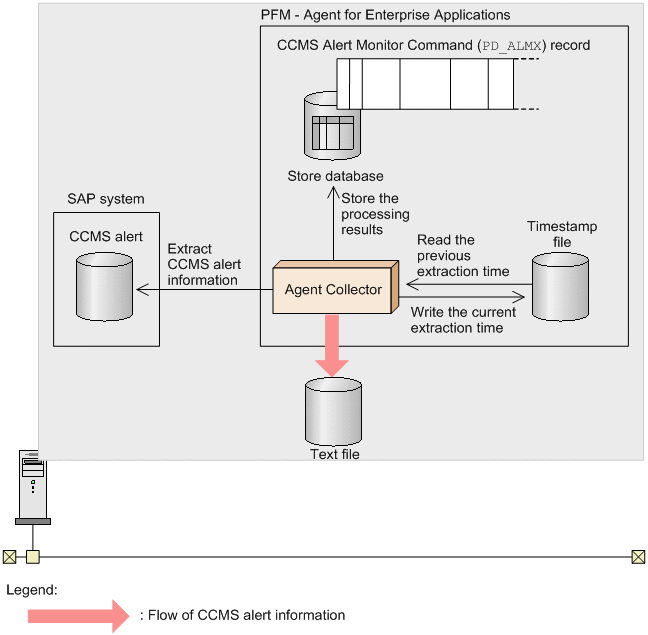

Figure 6‒2: Procedure for extracting CCMS alert information
