4.2.1 Failover when a failure occurs on PFM - Agent for Oracle host

Figure 4-3 shows the processing when failover occurs on a PFM - Agent for Oracle host.

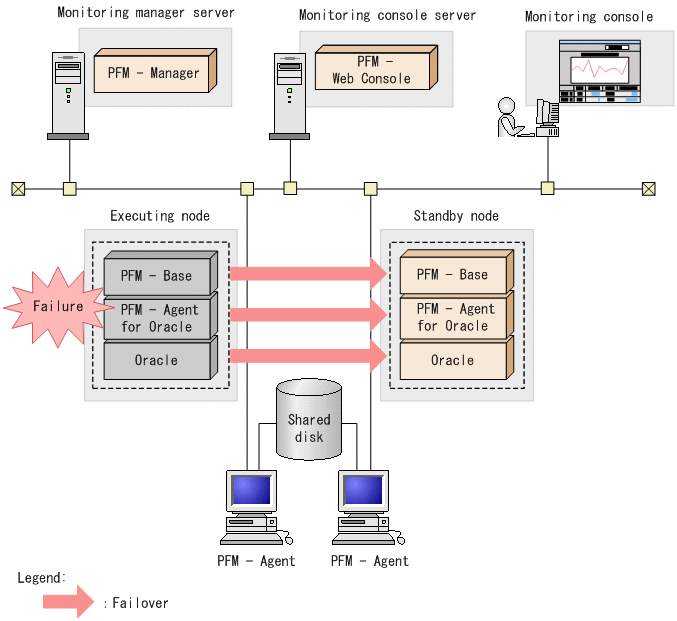

Figure 4‒3: Processing when a PFM - Agent host performs failover

When you attempt to operate PFM - Web Console during failover of PFM - Agent for Oracle, PFM - Web Console displays the message There was no answer(-6). In such a case, wait for the failover to be completed before performing the PFM - Web Console operation.

Once PFM - Agent for Oracle failover has been completed, you will be connected to the PFM - Agent for Oracle that was started on the failover target node and you will again be able to operate PFM - Web Console.
